D290 Fasco Motor | 1/10 hp 1050 RPM 4-Speed 5" Diameter 115 Volt

D290 Fasco Motor | 1/10 hp 1050 RPM 4-Speed 5" Diameter 115 Volt

This genuine Fasco motor is designed as a direct replacement for fan coil air conditioners and unit heater fans. It is a versatile, permanent split capacitor motor suitable for HVAC applications requiring reliable, multi-speed operation.

Key Specifications

• Horsepower: 1/10 hp
• RPM: 1050
• Voltage: 115 Volt
• Amperage: 2.2 amps
• Frame / Diameter: 5" diameter
• Shaft Dimensions: 1/2" x 8 1/2"
• Rotation: Reversible
• Bearings: Sleeve bearings
• Enclosure: Open ventilation (Air Over)

Product Features & Fitment

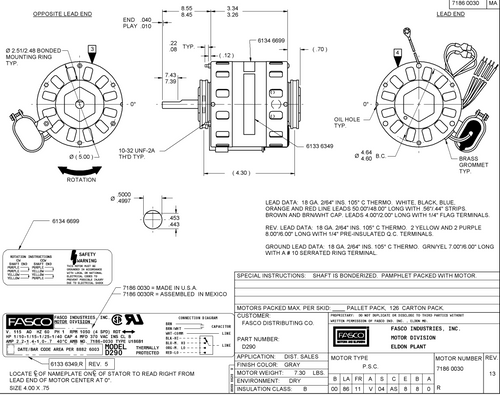

The motor features a resilient mount with a 4.62" bolt circle and includes 2 1/2" O.D. rubber mounting rings for secure installation. It comes equipped with a capacitor and is designed for easy integration into existing HVAC systems. The motor length excluding the shaft measures 3 1/4".

Warranty

1 Year Manufacturer Warranty
