D30P1GS Nidec 30 hp 3600 RPM 284TS Frame (Rigid Base) 575V ODP 3-Phase Electric Motor
D30P1GS Nidec 30 hp 3600 RPM 284TS Frame (Rigid Base) 575V ODP 3-Phase Electric Motor
D30P1GS Nidec 30 hp 3600 RPM 284TS Frame (Rigid Base) 575V ODP 3-Phase Electric Motor
D30P1GS Nidec 30 hp 3600 RPM 284TS Frame (Rigid Base) 575V ODP 3-Phase Electric Motor

Nidec

D30P1GS Nidec 30 hp 3600 RPM 284TS Frame (Rigid Base) 575V ODP 3-Phase Electric Motor

(No reviews) Write a Review
$2,305.75
$2,059.08
SKU D30P1GS
Shipping Calculated at Checkout
Compliance Tab /content/product_tabs/p65warnings.html
ON SALE LIMITED TIME DISCOUNT
Voltage 575V
Horsepower 30 HP
RPM 3600
Phase Three Phase
Frame 284TS
Enclosure ODP
Hertz 60 Hz
Amperage 27.4 Amps
Bearings Ball Bearings
Service Factor 1.15
Insulation Class Class F
Mounting Rigid Base
Adding to cart… The item has been added
Description
  • 30 hp 3600 RPM, 27.4 amps 575 Volts 60 Hz Three Phase Motor

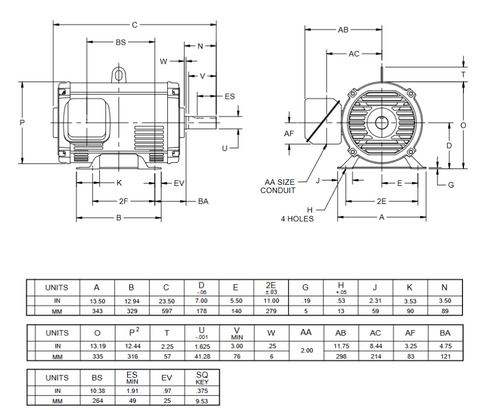

  • NEMA 284TS Rolled Steel Frame, Keyed Shaft 1 5/8" Diameter x 3 1/4"
  • Service Factor: 1.15, Overload protection = None
  • Rigid Base Mount, Ball Bearings, Class F Insulation, Reversible
  • 1 Year Manufacture Warranty

General purpose motor designed for use with pumps, fans, and compressors where contaminants are minimal. Wiring diagram on motor name plate. ODP = Open Drip Proof. G73516

Specifications
Compliance Tab /content/product_tabs/p65warnings.html
ON SALE LIMITED TIME DISCOUNT
Voltage 575V
Horsepower 30 HP
RPM 3600
Phase Three Phase
Frame 284TS
Enclosure ODP
Hertz 60 Hz
Amperage 27.4 Amps
Bearings Ball Bearings
Service Factor 1.15
Insulation Class Class F
Mounting Rigid Base
!
