D32C2J14C Nidec 1 1/2 hp 1800 RPM 145TC (Rigid Base) 115/208-230V ODP 1-Phase Motor
D32C2J14C Nidec 1 1/2 hp 1800 RPM 145TC (Rigid Base) 115/208-230V ODP 1-Phase Motor
D32C2J14C Nidec 1 1/2 hp 1800 RPM 145TC (Rigid Base) 115/208-230V ODP 1-Phase Motor
D32C2J14C Nidec 1 1/2 hp 1800 RPM 145TC (Rigid Base) 115/208-230V ODP 1-Phase Motor

Nidec

D32C2J14C Nidec 1 1/2 hp 1800 RPM 145TC (Rigid Base) 115/208-230V ODP 1-Phase Motor

(No reviews) Write a Review
$756.70
$676.09
SKU D32C2J14C
Shipping Free Shipping
Compliance Tab /content/product_tabs/p65warnings.html
ON SALE LIMITED TIME DISCOUNT
Voltage 115/208/230V
Horsepower 1/2 HP
RPM 1800
Phase Single Phase
Enclosure ODP
Hertz 60 Hz
Amperage 9.6 Amps
Bearings Ball Bearings
Service Factor 1.15
Insulation Class Class B
Mounting Rigid Base
Adding to cart… The item has been added
Description
  • 1 1/2 hp 1800 RPM, 19.2/10.0-9.6 amps 115/208-230 Volts 60 Hz Cap Start Single Phase Motor

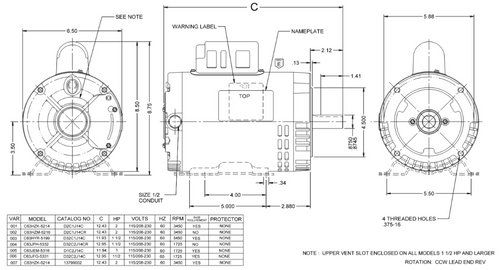

  • NEMA 145TC Rolled Steel Frame, Keyed Shaft 7/8" Diameter x 2 1/4"
  • Service Factor: 1.15 Overload protection = None
  • C-Face Mount, Ball Bearings, Class B Insulation, Reversible
  • 1 Year Manufacture Warranty

General purpose C-Face motor for pumps, conveyors, air compressors, and blowers. Wiring diagram on motor name plate. ODP = Open Drip-Proof. C063JFG5331012B

Specifications
Compliance Tab /content/product_tabs/p65warnings.html
ON SALE LIMITED TIME DISCOUNT
Voltage 115/208/230V
Horsepower 1/2 HP
RPM 1800
Phase Single Phase
Enclosure ODP
Hertz 60 Hz
Amperage 9.6 Amps
Bearings Ball Bearings
Service Factor 1.15
Insulation Class Class B
Mounting Rigid Base
!
