D34P2ACR Nidec 3/4 hp 1800 RPM 56C Frame (No Base) 208-230/460V ODP 3-Phase Electric Motor
D34P2ACR Nidec 3/4 hp 1800 RPM 56C Frame (No Base) 208-230/460V ODP 3-Phase Electric Motor
D34P2ACR Nidec 3/4 hp 1800 RPM 56C Frame (No Base) 208-230/460V ODP 3-Phase Electric Motor
D34P2ACR Nidec 3/4 hp 1800 RPM 56C Frame (No Base) 208-230/460V ODP 3-Phase Electric Motor

Nidec

D34P2ACR Nidec 3/4 hp 1800 RPM 56C Frame (No Base) 208-230/460V ODP 3-Phase Electric Motor

(No reviews) Write a Review
$356.50
$318.78
SKU D34P2ACR
Shipping Free Shipping
Compliance Tab /content/product_tabs/p65warnings.html
ON SALE LIMITED TIME DISCOUNT
Voltage 208/230/460V
Horsepower 3/4 HP
RPM 1800
Phase Three Phase
Frame 56C
Enclosure ODP
Hertz 60 Hz
Amperage 2.7/1.4 Amps
Bearings Ball Bearings
Service Factor 1.25
Insulation Class Class B
Mounting C-Face
Adding to cart… The item has been added
Description
  • 3/4 hp 1800 RPM, 2.8-2.7/1.4 amps  208-230/460 Volts 60 Hz Three Phase Motor
  • NEMA 56C frame Keyed Shaft 5/8" Diameter x 1 7/8"
  • Service Factor: 1.25, Overload protection = None
  • C-Mount, Ball Bearings, Class B Insulation, Reversible
  • 1 Year Manufacture Warranty

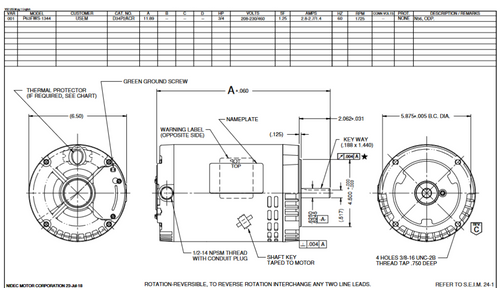

General purpose C-Face motor can be used for many applications requiring a three phase electric motor.  Wiring diagram on motor name plate. ODP = Open Drip Proof. P063FWS1344015B

Specifications
Compliance Tab /content/product_tabs/p65warnings.html
ON SALE LIMITED TIME DISCOUNT
Voltage 208/230/460V
Horsepower 3/4 HP
RPM 1800
Phase Three Phase
Frame 56C
Enclosure ODP
Hertz 60 Hz
Amperage 2.7/1.4 Amps
Bearings Ball Bearings
Service Factor 1.25
Insulation Class Class B
Mounting C-Face
!
