D50V3B Nidec 50 hp 1200 RPM 365T (Rigid Base) 230/460V ODP Inverter-Duty 3-Phase Motor
D50V3B Nidec 50 hp 1200 RPM 365T (Rigid Base) 230/460V ODP Inverter-Duty 3-Phase Motor
D50V3B Nidec 50 hp 1200 RPM 365T (Rigid Base) 230/460V ODP Inverter-Duty 3-Phase Motor
D50V3B Nidec 50 hp 1200 RPM 365T (Rigid Base) 230/460V ODP Inverter-Duty 3-Phase Motor

Nidec

D50V3B Nidec 50 hp 1200 RPM 365T (Rigid Base) 230/460V ODP Inverter-Duty 3-Phase Motor

(No reviews) Write a Review
$5,690.20
$5,080.24
SKU D50V3B
Shipping Calculated at Checkout
Compliance Tab /content/product_tabs/p65warnings.html
ON SALE LIMITED TIME DISCOUNT
Voltage 230/460V
Horsepower 50 HP
RPM 1200
Phase Three Phase
Enclosure ODP
Hertz 60 Hz
Amperage 117.0/59.0 Amps
Bearings Ball Bearings
Speeds 1-Speed
Service Factor 1.15
Insulation Class Class F
Mounting Rigid Base
Adding to cart… The item has been added
Description

    50 hp 1200 RPM, 117.0/59.0 amps 230/460 Volts 60 Hz Three Phase Motor

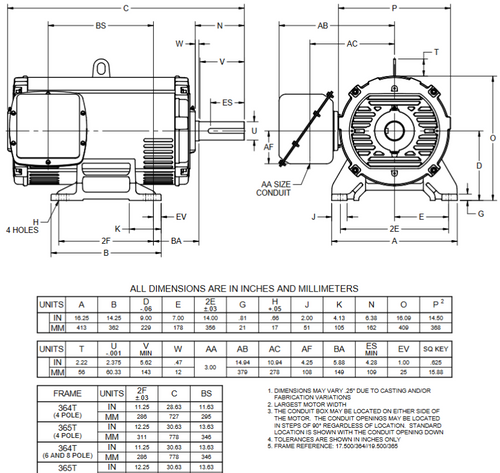

    NEMA 365T Rolled Steel Frame with Cast Iron End Bells, Keyed Shaft 2 1/8" Diameter x 5 1/4"
    Service Factor: 1.15 Overload protection = None
    C-Face Mount, Ball Bearings, Class F Insulation, Reversible
    1 Year Manufacture Warranty

Speed controllable motor for material handling, pumps, and fans, in normal environments. 5:1 speed range at constant torque, 20:1 at variable torque. NEMA design B. Brake provisions. Wiring diagram on motor name plate. ODP = Open Drip-Proof. HE77

Specifications
Voltage 230/460V
Horsepower 50 HP
RPM 1200
Phase Three Phase
Enclosure ODP
Hertz 60 Hz
Amperage 117.0/59.0 Amps
Bearings Ball Bearings
Speeds 1-Speed
Service Factor 1.15
Insulation Class Class F
Mounting Rigid Base
!
