D5C2K21Z Nidec 5 hp 1800 RPM 215 Frame (Rigid Base) 1-Speed 230V ODP Cap Start/Run Motor
D5C2K21Z Nidec 5 hp 1800 RPM 215 Frame (Rigid Base) 1-Speed 230V ODP Cap Start/Run Motor
D5C2K21Z Nidec 5 hp 1800 RPM 215 Frame (Rigid Base) 1-Speed 230V ODP Cap Start/Run Motor
D5C2K21Z Nidec 5 hp 1800 RPM 215 Frame (Rigid Base) 1-Speed 230V ODP Cap Start/Run Motor

Nidec

D5C2K21Z Nidec 5 hp 1800 RPM 215 Frame (Rigid Base) 1-Speed 230V ODP Cap Start/Run Motor

(No reviews) Write a Review
$2,358.65
$2,106.00
SKU D5C2K21Z
Shipping Calculated at Checkout
Compliance Tab /content/product_tabs/p65warnings.html
ON SALE LIMITED TIME DISCOUNT
Voltage 230V
Horsepower 5 HP
RPM 1800
Frame 215
Enclosure ODP
Hertz 60 Hz
Amperage 22.0 Amps
Bearings Ball Bearings
Speeds 1-Speed
Service Factor 1.15
Insulation Class Class F
Mounting Rigid Base
Adding to cart… The item has been added
Description
  • 5 hp 1800 RPM, 22.0 amps 230 Volts 60 Hz Capacitor Start/Run Motor

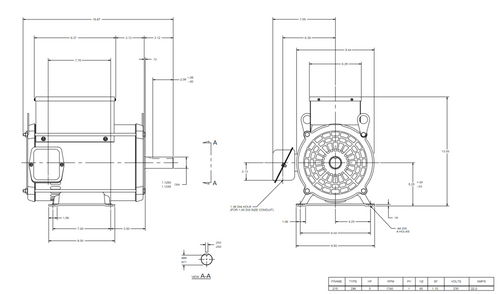

  • NEMA 215 Frame, Rolled Steel with Cast Aluminum End Bells, Keyed Shaft 1 3/8" Diameter x 3 3/8"
  • Service Factor: 1.15 Overload protection = None
  • Resilient Mount, Ball Bearings, Class F Insulation, Reversible
  • 1 Year Manufacture Warranty

For compressor, pumps, and conveyors needing a motor with high starting torque. Wiring diagram on motor name plate. ODP = Open Drip-Proof. AF83

Specifications
Compliance Tab /content/product_tabs/p65warnings.html
ON SALE LIMITED TIME DISCOUNT
Voltage 230V
Horsepower 5 HP
RPM 1800
Frame 215
Enclosure ODP
Hertz 60 Hz
Amperage 22.0 Amps
Bearings Ball Bearings
Speeds 1-Speed
Service Factor 1.15
Insulation Class Class F
Mounting Rigid Base
!
