D60V2B Nidec 50 hp 1800 RPM 364T (Rigid Base) 230/460V ODP Inverter-Duty 3-Phase Motor
D60V2B Nidec 50 hp 1800 RPM 364T (Rigid Base) 230/460V ODP Inverter-Duty 3-Phase Motor
D60V2B Nidec 50 hp 1800 RPM 364T (Rigid Base) 230/460V ODP Inverter-Duty 3-Phase Motor
D60V2B Nidec 50 hp 1800 RPM 364T (Rigid Base) 230/460V ODP Inverter-Duty 3-Phase Motor

Nidec

D60V2B Nidec 50 hp 1800 RPM 364T (Rigid Base) 230/460V ODP Inverter-Duty 3-Phase Motor

(No reviews) Write a Review
$4,562.05
$4,072.96
SKU D60V2B
Availability Subject to Availability
Shipping Calculated at Checkout
Compliance Tab /content/product_tabs/p65warnings.html
ON SALE LIMITED TIME DISCOUNT
Voltage 230/460V
Horsepower 50 HP
RPM 1800
Phase Three Phase
Enclosure ODP
Hertz 60 Hz
Amperage 139/69.0 Amps
Bearings Ball Bearings
Speeds 1-Speed
Service Factor 1.15
Insulation Class Class F
Mounting Rigid Base
Adding to cart… The item has been added
Description

    60 hp 1800 RPM, 139/69.0 amps 230/460 Volts 60 Hz Three Phase Motor

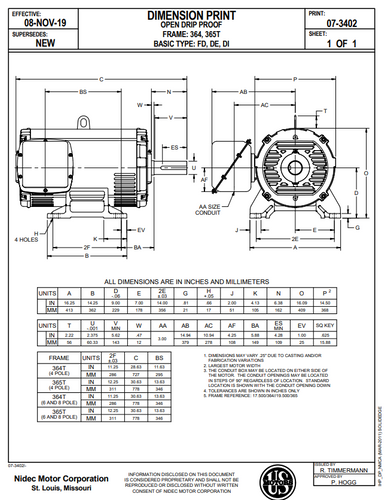

    NEMA 364T Rolled Steel Frame with Cast Iron End Bells, Keyed Shaft 2-3/8" Diameter x 5-7/8"
    Service Factor: 1.15 Overload protection = None
    C-Face Mount, Ball Bearings, Class F Insulation, Reversible
    1 Year Manufacture Warranty

Speed controllable motor for material handling, pumps, and fans, in normal environments. 5:1 speed range at constant torque, 20:1 at variable torque. NEMA design B. Brake provisions. Wiring diagram on motor name plate. ODP = Open Drip-Proof. HE74

Specifications
Compliance Tab /content/product_tabs/p65warnings.html
ON SALE LIMITED TIME DISCOUNT
Voltage 230/460V
Horsepower 50 HP
RPM 1800
Phase Three Phase
Enclosure ODP
Hertz 60 Hz
Amperage 139/69.0 Amps
Bearings Ball Bearings
Speeds 1-Speed
Service Factor 1.15
Insulation Class Class F
Mounting Rigid Base
!
