D7V1B Nidec 7 1/2 hp 3600 RPM 184T (Rigid Base) 230/460V ODP Inverter-Duty 3-Phase Motor
D7V1B Nidec 7 1/2 hp 3600 RPM 184T (Rigid Base) 230/460V ODP Inverter-Duty 3-Phase Motor
D7V1B Nidec 7 1/2 hp 3600 RPM 184T (Rigid Base) 230/460V ODP Inverter-Duty 3-Phase Motor
D7V1B Nidec 7 1/2 hp 3600 RPM 184T (Rigid Base) 230/460V ODP Inverter-Duty 3-Phase Motor

Nidec

D7V1B Nidec 7 1/2 hp 3600 RPM 184T (Rigid Base) 230/460V ODP Inverter-Duty 3-Phase Motor

(No reviews) Write a Review
$940.70
$839.50
SKU D7V1B
Shipping Free Shipping
Compliance Tab /content/product_tabs/p65warnings.html
ON SALE LIMITED TIME DISCOUNT
Voltage 230/460V
Horsepower 1/2 HP
RPM 3600
Phase Three Phase
Enclosure ODP
Hertz 60 Hz
Amperage 18.1/9.1 Amps
Bearings Ball Bearings
Speeds 1-Speed
Service Factor 1.15
Insulation Class Class F
Mounting Rigid Base
Adding to cart… The item has been added
Description
  • 7 1/2 hp 3600 RPM, 18.1/9.1 amps 230/460 Volts 60 Hz Three Phase Motor

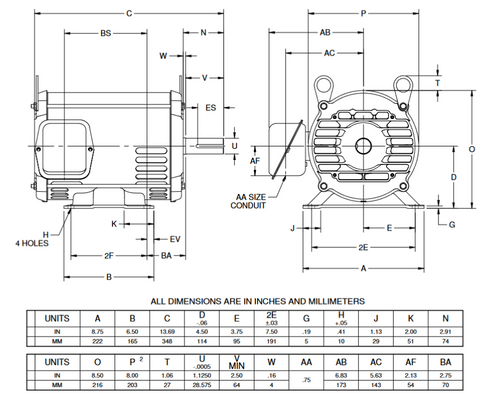

  • NEMA 184T Rolled Steel Frame with Cast Aluminum End Bells, Keyed Shaft 1 1/8" Diameter x 2 3/4"
  • Service Factor: 1.15 Overload protection = None
  • C-Face Mount, Ball Bearings, Class F Insulation, Reversible
  • 1 Year Manufacture Warranty

Speed controllable motor for material handling, pumps, and fans, in normal environments. 5:1 speed range at constant torque, 20:1 at variable torque. NEMA design B. Brake provisions. Wiring diagram on motor name plate. ODP = Open Drip-Proof. FV36

Specifications
Compliance Tab /content/product_tabs/p65warnings.html
ON SALE LIMITED TIME DISCOUNT
Voltage 230/460V
Horsepower 1/2 HP
RPM 3600
Phase Three Phase
Enclosure ODP
Hertz 60 Hz
Amperage 18.1/9.1 Amps
Bearings Ball Bearings
Speeds 1-Speed
Service Factor 1.15
Insulation Class Class F
Mounting Rigid Base
!
