Dayton Model 3XA85 DC Gear Motor 90 RPM 1/4 hp TENV 90VDC

Dayton Model 3XA85 DC Gear Motor 90 RPM 1/4 hp TENV 90VDC

The Dayton Model 3XA85 is a durable DC gear motor designed for industrial applications requiring reliable torque and controlled speed. It serves as a direct replacement for similar 1/4 hp, 90 RPM motors operating at 90 VDC, ideal for various machinery and equipment.

Key Specifications

• Horsepower: 1/4 hp
• RPM: 90
• Voltage: 90 VDC
• Amperage: 2.33 amps
• Enclosure: TENV (Totally Enclosed Non-Ventilated)

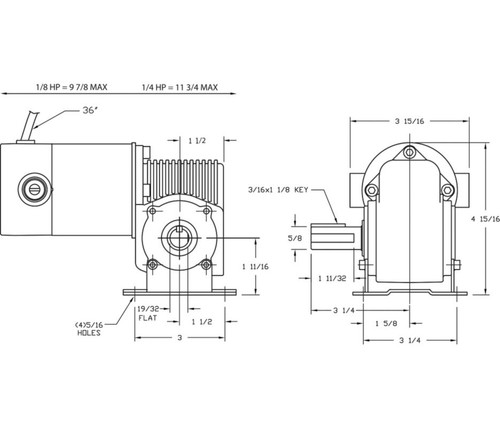

• Shaft Dimensions: 5/8" diameter x 1 1/2" length
• Rotation: Reversible

Product Features & Fitment

This motor delivers 90 inch-pounds of torque and features a robust shaft suitable for heavy-duty applications. Its reversible rotation allows for flexible installation options. An optional speed control (Model 170-113-003) is available to customize motor performance as needed.

Warranty

1 Year Manufacturer Warranty
