Dayton Model 52JE12 Gear Motor 3/8" Shaft 6 RPM CW 115V

Dayton Model 52JE12 Gear Motor 3/8" Shaft 6 RPM CW 115V

The Dayton Model 52JE12 is a 1/50 HP gear motor designed for low-speed, clockwise rotation applications. It operates at 115 VAC and replaces model 5CFL2, making it suitable for a variety of industrial and commercial equipment including pellet and corn stoves, conveyor toasters, pumps, vending machines, and valve actuators.

Key Specifications

• Horsepower: 1/50 HP
• RPM: 6
• Voltage: 115 V
• Amperage: 1.30 A

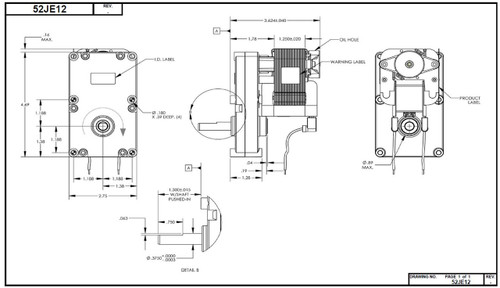

• Shaft Dimensions: 3/8" diameter x 1-5/16" length
• Rotation: Clockwise (CW) facing shaft

Product Features & Fitment

This gear motor features a parallel shaft shaded pole design optimized for continuous operation under moderate load conditions. It delivers a run torque of 140 inch-pounds and supports an overhung load of up to 30 pounds. The non-reversible rotation and specific shaft dimensions facilitate direct replacement and straightforward installation in compatible equipment.

Cross Reference

• 5CFL2

Warranty

1 Year Manufacturer Warranty
