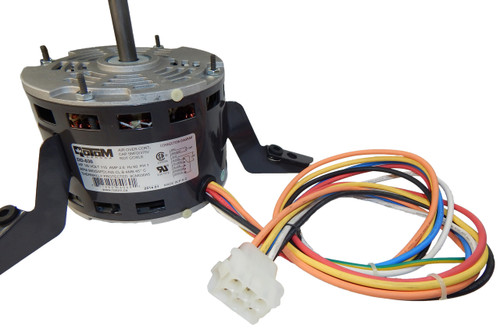

DD-030 | 1/6 hp 950 RPM, 5-Spd, 115V Rotom Blower Motor

DD-030 | 1/6 hp 950 RPM, 5-Spd, 115V Rotom Blower Motor

The DD-030 is a 1/6 horsepower blower motor designed for fan coil units in heating and air conditioning systems, ideal for high-rise apartments, condominiums, and hotels. It serves as a direct replacement for models such as Climetec, Snyder-General, Temspec, and Unilux.

Key Specifications

• Horsepower: 1/6 hp
• RPM: 950
• Voltage: 115V
• Amperage: 2.6 amps
• Shaft Dimensions: 1/2" x 4.4"
• Rotation: Clockwise (CW) Shaft End
• Frame / Diameter: 4" Motor Case Length
• Bearings: Sleeve Bearings

Product Features & Fitment

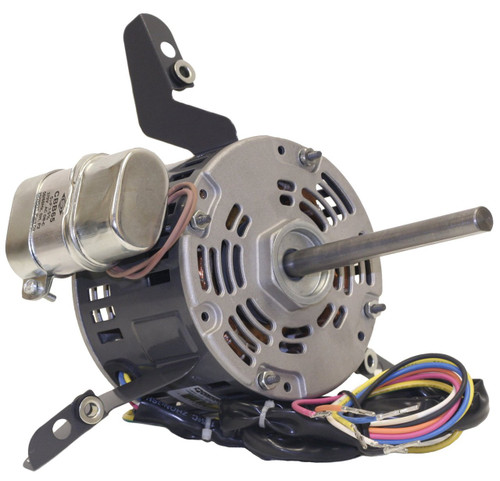

This motor features a 5-speed design and includes a 5 MFD capacitor mounted directly to the motor for easy installation. It comes equipped with a torsion flex mount and 34" leads terminating in a 6-hole molded connector plug, ensuring compatibility and straightforward replacement. Suggested replacement for models including 5KCP39DGV279S, DD-029, HVA808, M4-R2299, and SS2799.

Cross Reference

• Climetec, Snyder-General, Temspec, Unilux
• Suggested to replace: 5KCP39DGV279S, DD-029, HVA808, M4-R2299, SS2799

Warranty

1 Year Manufacturer Warranty
