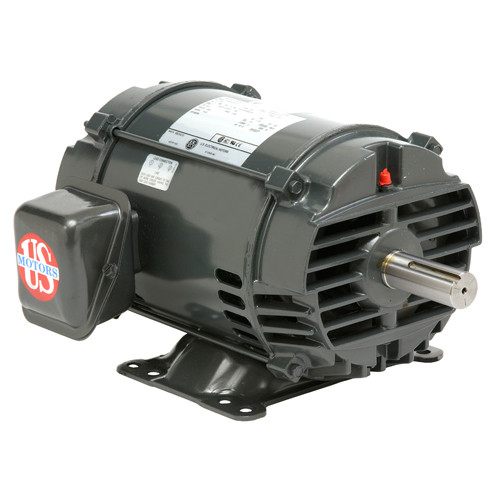

DH30S2GF Nidec 30 hp 1800 RPM 575V ODP 284T (Rigid Base) 3-Phase Dry Elevator Motor

DH30S2GF Nidec 30 hp 1800 RPM 575V ODP 284T (Rigid Base) 3-Phase Dry Elevator Motor

SKU:
DH30S2GF
Weight:
225.00 LBS
Width:
28.00 (in)
Height:
19.00 (in)
Depth:
21.00 (in)
Shipping:
Calculated at Checkout
ON SALE:
LIMITED TIME DISCOUNT
Voltage:
575V
Horsepower:
30 HP
RPM:
1800
Phase:
Three Phase
Enclosure:
ODP
Hertz:
60 Hz
Amperage:
29.6 Amps
Bearings:
Ball Bearings
Service Factor:
1.0
Insulation Class:
Class F
Mounting:
Rigid Base
Duty:
Intermittent Duty
Was: $4,136.55
Now: $3,693.00
Adding to cart… The item has been added
  • 30 hp 1800 RPM, 29.6 amps 575 Volts 60 Hz Three Phase Motor

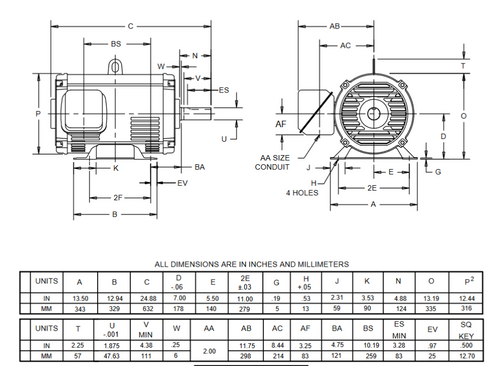

  • NEMA 284T Cast Iron End Bells, Keyed Shaft 1 7/8" Diameter x 4 7/8"
  • Service Factor: 1.0 Overload protection = None, Intermittent Duty
  • Rigid Base Mount, Ball Bearings, Class F Insulation,
  • 1 Year Manufacture Warranty

For hydraulically driven elevators where motor remains dry. 72" lead length. Wiring diagram on motor name plate. ODP = Open Drip Proof. BW52

!
