DH30S2HF Nidec 30 hp 1800 RPM 200V ODP 284T (Rigid Base) 3-Phase Dry Elevator Motor

DH30S2HF Nidec 30 hp 1800 RPM 200V ODP 284T (Rigid Base) 3-Phase Dry Elevator Motor

SKU:
DH30S2HF
Weight:
225.00 LBS
Shipping:
Calculated at Checkout
ON SALE:
LIMITED TIME DISCOUNT
Was: $3,329.00
Now: $2,972.60
Adding to cart… The item has been added
  • 30 hp 1800 RPM, 84.0 amps 200 Volts 60 Hz Three Phase Motor

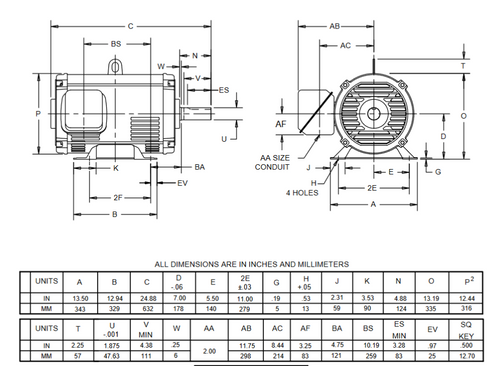

  • NEMA 284T Cast Iron End Bells, Keyed Shaft 1 7/8" Diameter x 4 7/8"
  • Service Factor: 1.0 Overload protection = None, Intermittent Duty
  • Rigid Base Mount, Ball Bearings, Class F Insulation,
  • 1 Year Manufacture Warranty

For hydraulically driven elevators where motor remains dry. 72" lead length. Wiring diagram on motor name plate. ODP = Open Drip Proof. BW50

!
