DH75S2BF Nidec 75 hp 1800 RPM 230/460V ODP 364T (Rigid Base) 3-Phase Dry Elevator Motor

DH75S2BF Nidec 75 hp 1800 RPM 230/460V ODP 364T (Rigid Base) 3-Phase Dry Elevator Motor

SKU:
DH75S2BF
Weight:
580.00 LBS
Width:
32.00 (in)
Height:
24.00 (in)
Depth:
29.00 (in)
Shipping:
Calculated at Checkout
ON SALE:
LIMITED TIME DISCOUNT
Voltage:
230/460V
Horsepower:
75 HP
RPM:
1800
Phase:
Three Phase
Enclosure:
ODP
Hertz:
60 Hz
Amperage:
139/69.0 Amps
Bearings:
Ball Bearings
Service Factor:
1.0
Insulation Class:
Class F
Mounting:
Rigid Base
Duty:
Intermittent Duty
Was: $8,142.00
Now: $7,269.96
Adding to cart… The item has been added
  • 75 hp 1800 RPM, 139/69.0 amps 230/460 Volts 60 Hz Three Phase Motor

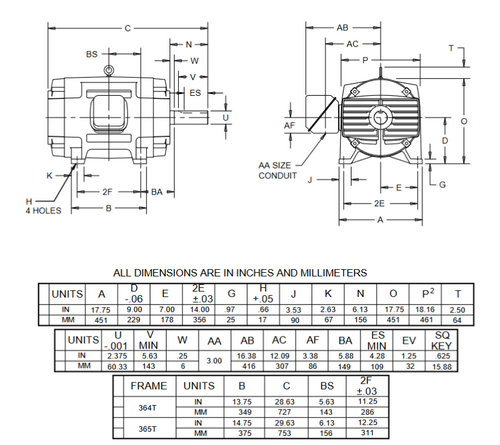

  • NEMA 364T Cast Iron End Bells, Keyed Shaft 2 3/8" Diameter x 6 1/8"
  • Service Factor: 1.0 Overload protection = None, Intermittent Duty
  • Rigid Base Mount, Ball Bearings, Class F Insulation,
  • 1 Year Manufacture Warranty

For hydraulically driven elevators where motor remains dry. 72" lead length. Wiring diagram on motor name plate. ODP = Open Drip Proof. BW62

!
