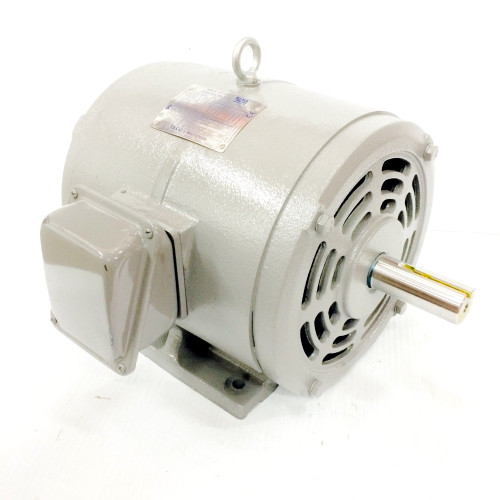

DHP0026 TECO-Westinghouse 2 HP 1200 RPM 184T 230/460V ODP Cast Iron 3-Phase Motor

DHP0026 TECO-Westinghouse 2 HP 1200 RPM 184T 230/460V ODP Cast Iron 3-Phase Motor

This TECO-Westinghouse general purpose motor delivers 2 horsepower at 1200 RPM and is designed to replace or upgrade motors in pumps, fans, and compressors. It operates on 230/460V three-phase power and meets NEMA Premium efficiency standards for reliable industrial performance.

Key Specifications

• Horsepower: 2 HP
• RPM: 1200
• Voltage: 230/460 V
• Amperage: 6.03/3.00 A
• Enclosure: Open Drip Proof (ODP)
• Frame / Diameter: NEMA 184T
• Shaft Dimensions: 2 3/4" length x 1 1/8" diameter, keyed
• Bearings: Ball Bearings

Product Features & Fitment

Constructed with a rugged cast iron frame and rigid base, this motor is reversible and suitable for inverter duty with a speed range of 20:1 for variable torque and 10:1 for constant torque applications. It features Class F insulation and complies with NEMA MG-1 Part 31.4.4.2 for inverter use. The motor is UL recognized, CSA approved, and CE marked, ensuring compliance with industry safety and quality standards.

Warranty

1 Year Manufacturer Warranty
