DHP0036G TECO-Westinghouse 3 HP 1200 RPM 213T 230/460V ODP Cast Iron SGR 3-Phase Motor

SKU:
DHP0036G
Weight:
183.00 LBS
Shipping:
Calculated at Checkout
$720.75
Adding to cart… The item has been added

TECO WESTINGHOUSE, NEMA PREMIUM ELECTRIC MOTOR

  • 3 hp 1200 RPM, 8.2/4.1 amps 230/460 Volts 60 Hz. Three Phase

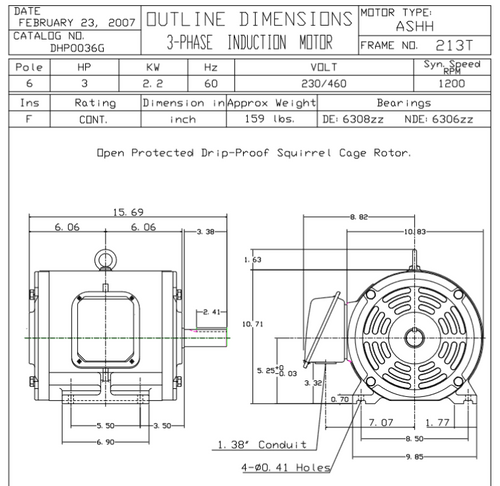

  • NEMA 213T Frame, 3 3/8 x 1 3/8" Dia. Keyed Shaft
  • Cast Iron Frame, Open Drip Proof
  • Service Factor: 1.15, Thermal Overload Protection: None
  • Rigid Base, Reversible, Ball Bearings, Class F Insulation
  • Suitable for Inverter Use per NEMA MG-1 Part 31.4.4.2
  • Inverter Duty Speed Range: 20:1 Variable Torque, 10:1 Constant Torque
  • Motors are U.L. Recognized, CSA Approved and CE Marked
  • 1 Year Manufacture Warranty

General purpose SGR motor for use on pumps, fans, and compressors. The SGR bearing protection ring resists bearing damage by diverting stray electric currents to ground.
