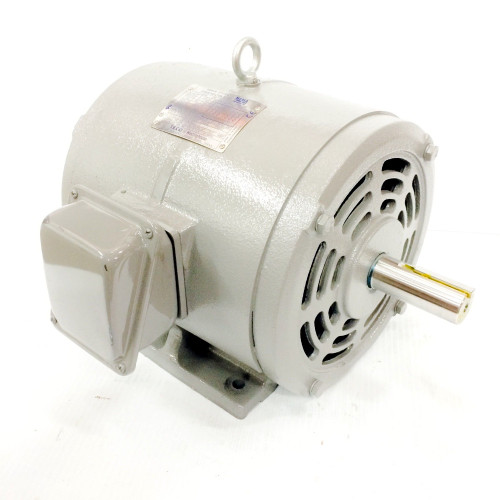

DHP0052G TECO-Westinghouse 5 HP 3600 RPM 182T 230/460V ODP Cast Iron SGR 3-Phase Motor
DHP0052G TECO-Westinghouse 5 HP 3600 RPM 182T 230/460V ODP Cast Iron SGR 3-Phase Motor
DHP0052G TECO-Westinghouse 5 HP 3600 RPM 182T 230/460V ODP Cast Iron SGR 3-Phase Motor
DHP0052G TECO-Westinghouse 5 HP 3600 RPM 182T 230/460V ODP Cast Iron SGR 3-Phase Motor

TECO WESTINGHOUSE

DHP0052G TECO-Westinghouse 5 HP 3600 RPM 182T 230/460V ODP Cast Iron SGR 3-Phase Motor

(No reviews) Write a Review
$578.54
SKU DHP0052G
Shipping Calculated at Checkout
Voltage 230/460V
Horsepower 5 HP
RPM 3600
Phase Three Phase
Frame 182T
Enclosure ODP
Hertz 60 Hz
Amperage 11.8/5.9 Amps
Bearings Ball Bearings
Service Factor 1.15
Insulation Class Class F
Mounting Rigid Base
Duty Inverter Duty
Adding to cart… The item has been added
Description

TECO WESTINGHOUSE, NEMA PREMIUM ELECTRIC MOTOR

  • 5 hp 3600 RPM, 11.8/5.9 amps 230/460 Volts 60 Hz. Three Phase

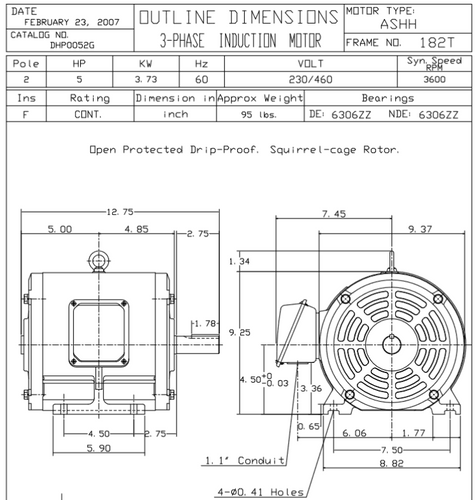

  • NEMA 182T Frame, 2 3/4 x 1 1/8" Dia. Keyed Shaft
  • Cast Iron Frame, Open Drip Proof
  • Service Factor: 1.15, Thermal Overload Protection: None
  • Rigid Base, Reversible, Ball Bearings, Class F Insulation
  • Suitable for Inverter Use per NEMA MG-1 Part 31.4.4.2
  • Inverter Duty Speed Range: 20:1 Variable Torque, 10:1 Constant Torque
  • Motors are U.L. Recognized, CSA Approved and CE Marked
  • 1 Year Manufacture Warranty

General purpose SGR motor for use on pumps, fans, and compressors. The SGR bearing protection ring resists bearing damage by diverting stray electric currents to ground.

Specifications
Voltage 230/460V
Horsepower 5 HP
RPM 3600
Phase Three Phase
Frame 182T
Enclosure ODP
Hertz 60 Hz
Amperage 11.8/5.9 Amps
Bearings Ball Bearings
Service Factor 1.15
Insulation Class Class F
Mounting Rigid Base
Duty Inverter Duty
!
