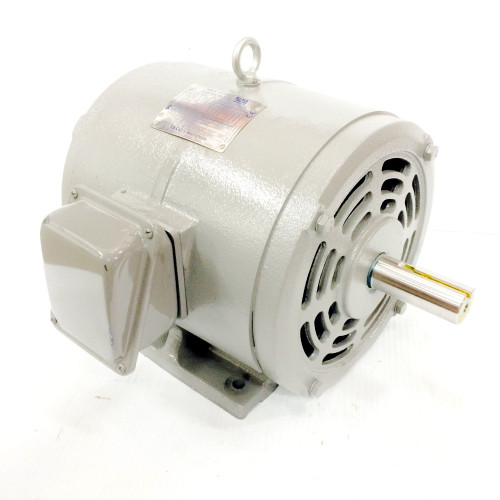

DHP7/56G TECO-Westinghouse 7 1/2 HP 1200 RPM 254T 230/460V ODP Cast Iron SGR 3-Phase Motor

TECO WESTINGHOUSE, NEMA PREMIUM ELECTRIC MOTOR

• 7 1/2 hp 1200 RPM, 19.7/9.9 amps 230/460 Volts 60 Hz. Three Phase
• NEMA 254T Frame, 4 x 1 5/8" Dia. Keyed Shaft

• Cast Iron Frame, Open Drip Proof

• Service Factor: 1.15, Thermal Overload Protection: None
• Rigid Base, Reversible, Ball Bearings, Class F Insulation
• Suitable for Inverter Use per NEMA MG-1 Part 31.4.4.2
• Inverter Duty Speed Range: 20:1 Variable Torque, 10:1 Constant Torque
• Motors are U.L. Recognized, CSA Approved and CE Marked
• 1 Year Manufacture Warranty


General purpose SGR motor for use on pumps, fans, and compressors. The SGR bearing protection ring resists bearing damage by diverting stray electric currents to ground.
