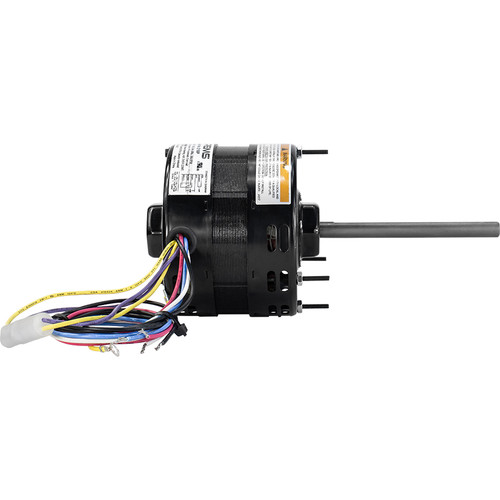

Direct Drive Furnace OEM Replacement 1/4 hp 1050 RPM CW 5" 3-Speed 115 Volts Direct Drive Furnace Motor

Direct OEM Aftermarket Replacement 1/4 hp 1050 RPM CW 5" 3-Speed 115 Volts Direct Drive Furnace Motor

The PEMS D150P OEM aftermarket replacement motor is designed for furnace applications, providing reliable performance and compatibility with original equipment.

Key Specifications

• Horsepower: 1/4 hp
• RPM: 1050 (3-Speed: High, Medium, Low)
• Voltage: 115 Volts
• Amperage: 3.4 amps
• Enclosure: Open Ventilation - Air Over
• Frame / Diameter: 5 Inch
• Shaft Dimensions: 1/2" x 6"
• Rotation: Reversible
• Bearings: Sleeve Bearings

Product Features & Fitment

This PSC style motor features a resilient ring mount and can be installed using a belly band or stud mount with a 4.62" bolt circle. The motor length excluding the shaft measures 3 3/4", making it suitable for compact furnace assemblies. It is designed for direct drive operation and improved energy efficiency through reduced amperage.

Cross Reference

• Fasco D150, 7186-0009, 71860009

Warranty

1 Year Manufacturer Warranty
