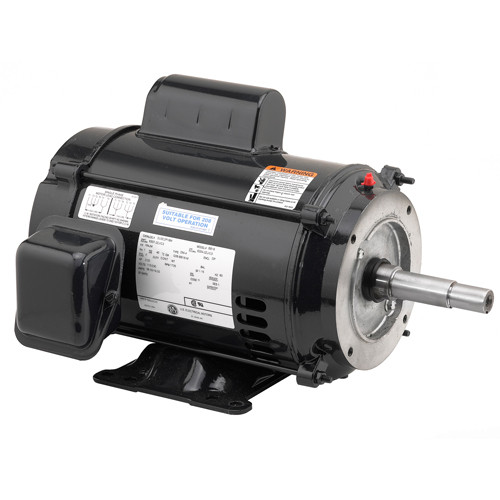

DJ5C1K18M Nidec 5 hp 3600 RPM 1-phase 184JM Frame 230V ODP Close-Coupled Pump Motor

DJ5C1K18M Nidec 5 hp 3600 RPM 1-phase 184JM Frame 230V ODP Close-Coupled Pump Motor

This Nidec DJ5C1K18M is a 5 horsepower, single-phase pump motor designed for direct coupling applications. It replaces standard 184JM frame motors and is ideal for use in pump systems requiring reliable, high-speed operation at 3600 RPM.

Key Specifications

• Horsepower: 5 HP
• RPM: 3600
• Voltage: 230V
• Amperage: 19.6 amps
• Enclosure: Open Drip Proof (ODP)

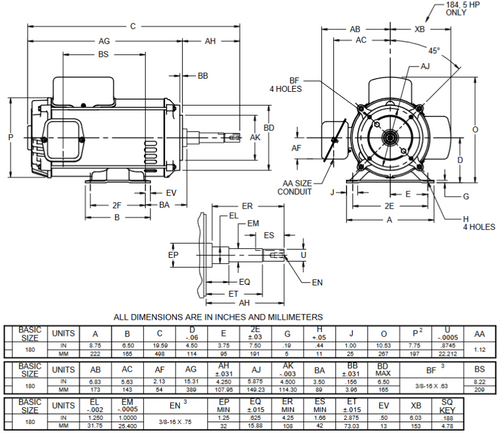

• Frame / Diameter: NEMA 184JM Rolled Steel Frame
• Rotation: Reversible
• Bearings: Ball Bearings

Product Features & Fitment

This motor features a rolled steel 184JM frame with a JM steel shaft, providing durability and strength for pump applications. It includes a rigid base and C-face mounting for secure installation. The close-coupled design allows the pump impeller to be mounted directly on the motor shaft, simplifying assembly and reducing alignment issues. Thermal protection is not included, and the motor is rated with a 1.15 service factor and Class F insulation.

Warranty

1 Year Manufacturer Warranty
