DJ5P2DM US Motors 5 hp 1800 RPM 3-phase 184JM Frame 208-230/460V (ODP) Close-Coupled Pump Motor

DJ5P2DM US Motors 5 hp 1800 RPM 3-phase 184JM Frame 208-230/460V (ODP) Close-Coupled Pump Motor

This US Motors DJ5P2DM is a 5 horsepower, 1800 RPM, three-phase close-coupled pump motor designed for reliable industrial and HVAC pump applications. It replaces standard 184JM frame motors and is suitable for systems requiring 208-230/460V operation.

Key Specifications

• Horsepower: 5 HP
• RPM: 1800
• Voltage: 208-230/460V, 60 Hz
• Amperage: 13.7-12.4/6.2 Amps
• Enclosure: Open Drip Proof (ODP)

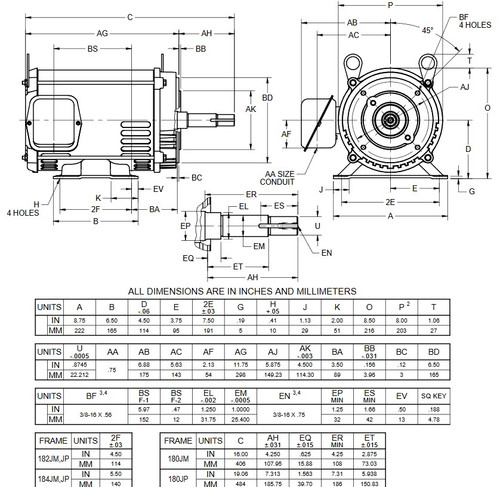

• Frame / Diameter: NEMA 184JM Rolled Steel Frame
• Rotation: Reversible
• Bearings: Ball Bearings

Product Features & Fitment

This motor features a cast aluminum end-shield and a stainless steel JM shaft for durability and corrosion resistance. It includes a rigid base for stable mounting and is designed with a close-coupled configuration, meaning the pump impeller mounts directly on the motor shaft for compact installation. The motor also offers a 1.15 service factor, Class F insulation, and built-in auto overload thermal protection for enhanced performance and longevity.

Warranty

1 Year Manufacturer Warranty
