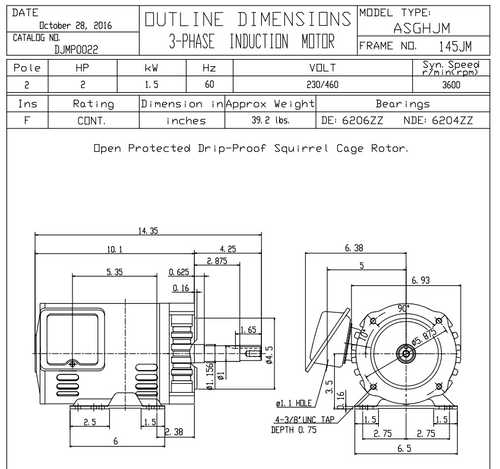

DJMP0022 TECO Westinghouse 2 hp 3600 RPM 143/145JM Frame 230/460V ODP Close-Coupled 3-Phase Motor

SKU:
DJMP0022
Weight:
45.00 LBS
Shipping:
Calculated at Checkout
$332.50

TECO WESTINGHOUSE, NEMA PREMIUM ELECTRIC MOTOR

  • 2 hp 3600 RPM, 5.63/2.55 amps 230/460 Volts 60hz. Three Phase
  • NEMA 143/145JM Frame, Special shaft
  • Rolled Steel Frame, Enclosure: Open Drip Proof (IP22)
  • Service Factor: 1.15, Thermal Overload Protection: None
  • Rigid Base, Reversible, Ball Bearings, Class F Insulation
  • Suitable for Inverter Use per NEMA MG-1 Part 31.4.4.2
  • Inverter Duty Speed Range: 20:1 Variable Torque, 10:1 Constant Torque
  • Motors are U.L. Recognized, CSA Approved and CE Marked
  • 1 Year Manufacture Warranty

Applications: Fans & Blowers, Pumps, Crushers, Compressors, Mixers, Conveyors
