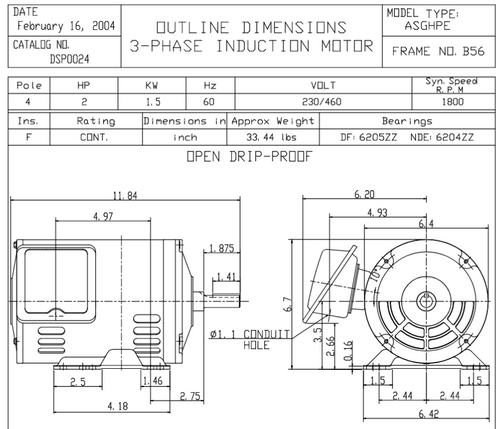

DSP0024 TECO-Westinghouse 2 HP 1800 RPM 56 Frame 230/460V ODP Rolled Steel 3-Phase Motor

DSP0024 TECO-Westinghouse 2 HP 1800 RPM 56 Frame 230/460V ODP Rolled Steel 3-Phase Motor

The DSP0024 is a TECO-Westinghouse general purpose electric motor designed for use in pumps, fans, and compressors. It offers reliable performance as a replacement motor with a robust rolled steel frame and open drip proof enclosure.

Key Specifications

• Horsepower: 2 HP
• RPM: 1800
• Voltage: 230/460V
• Amperage: 5.5/2.7 Amps
• Enclosure: Open Drip Proof (ODP)
• Frame / Diameter: NEMA 56 Frame
• Shaft Dimensions: 1 7/8" x 5/8" Diameter, Keyed Shaft
• Rotation: Reversible
• Bearings: Ball Bearings

Product Features & Fitment

This motor features a rigid base for stable mounting and is suitable for inverter use in accordance with NEMA MG-1 Part 31.4.4.2 standards. It supports inverter duty with a speed range of 20:1 for variable torque and 10:1 for constant torque applications. The motor is equipped with Class F insulation and does not include thermal overload protection.

Warranty

1 Year Manufacturer Warranty
