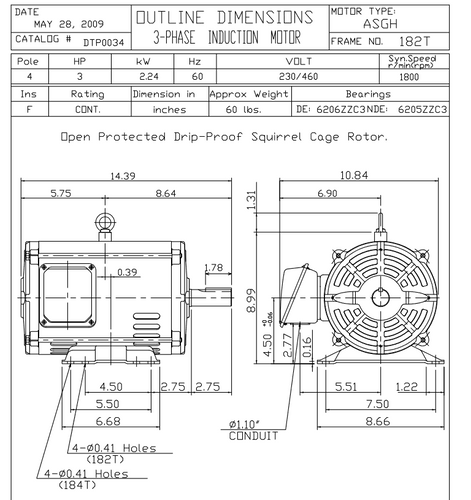

DTP0034 TECO Westinghouse 3 hp 1800 RPM 182/184T Frame 230/460V ODP 3-Phase Motor

DTP0034 TECO Westinghouse 3 hp 1800 RPM 182/184T Frame 230/460V ODP 3-Phase Motor

The DTP0034 is a TECO Westinghouse premium electric motor designed for industrial applications such as fans, blowers, pumps, crushers, compressors, mixers, and conveyors. It serves as a reliable replacement motor offering high efficiency and robust performance in three-phase power systems.

Key Specifications

• Horsepower: 3 hp
• RPM: 1800
• Voltage: 230/460 V
• Amperage: 8.6/4.3 A
• Enclosure: Open Drip Proof (ODP), IP22
• Frame / Diameter: NEMA 182/184T Frame
• Shaft Dimensions: Keyed shaft, 1 1/8" diameter x 2 3/4" length
• Rotation: Reversible
• Bearings: Ball bearings

Product Features & Fitment

This motor features a rolled steel rigid base frame for secure mounting and is suitable for inverter use in accordance with NEMA MG-1 Part 31.4.4.2 standards. It supports inverter duty with a speed range of 20:1 for variable torque and 10:1 for constant torque applications. The motor is equipped with Class F insulation and does not include thermal overload protection.

Warranty

1 Year Manufacturer Warranty
