DTP0102 TECO Westinghouse 10 hp 3600 RPM 213/215T Frame 230/460V ODP 3-Phase Motor

DTP0102 TECO Westinghouse 10 hp 3600 RPM 213/215T Frame 230/460V ODP 3-Phase Motor

SKU:
DTP0102
Weight:
158.00 LBS
Width:
20.00 (in)
Height:
15.00 (in)
Depth:
15.00 (in)
Shipping:
Calculated at Checkout
Voltage:
230/460V
Horsepower:
10 HP
RPM:
3600
Phase:
Three Phase
Frame:
215T Frame
Enclosure:
ODP
Hertz:
60 Hz
Amperage:
24.3/12.2 Amps
Bearings:
Ball Bearings
Service Factor:
1.15
Insulation Class:
Class F
Mounting:
Rigid Base
Duty:
Inverter Duty
$724.16
Adding to cart… The item has been added

TECO WESTINGHOUSE, NEMA PREMIUM ELECTRIC MOTOR



  • 10 hp 3600 RPM, 24.3/12.2 amps 230/460 Volts 60hz. Three Phase

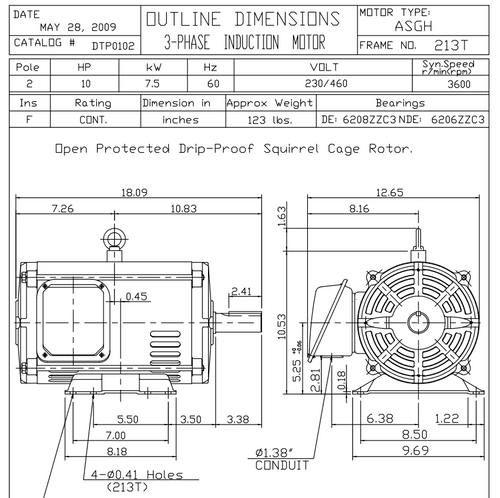

  • NEMA 213/215T Frame, Keyed Shaft 1 3/8" Diameter x 3 3/8"
  • Rolled Steel Frame, Enclosure: Open Drip Proof (IP22)
  • Service Factor: 1.15, Thermal Overload Protection: None
  • Rigid Base, Reversible, Ball Bearings, Class F Insulation
  • Suitable for Inverter Use per NEMA MG-1 Part 31.4.4.2
  • Inverter Duty Speed Range: 20:1 Variable Torque, 10:1 Constant Torque
  • Motors are U.L. Recognized, CSA Approved and CE Marked
  • 1 Year Manufacture Warranty

Applications: Fans & Blowers, Pumps, Crushers, Compressors, Mixers, Conveyors

!
