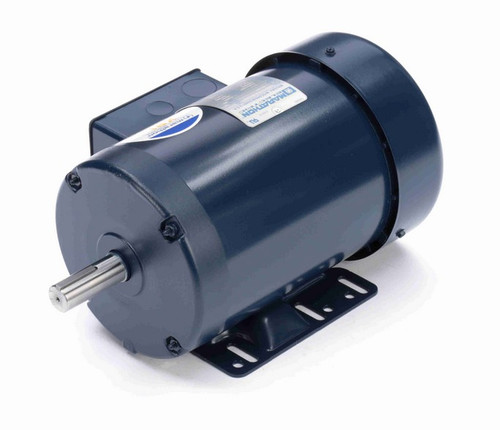

E2101 Marathon 1 hp 208-230/460V 1800 RPM 3-Phase 143T Frame TEFC (rigid base) Motor

E2101 Marathon 1 hp 208-230/460V 1800 RPM 3-Phase 143T Frame TEFC (rigid base) Motor

The Marathon E2101 is a general-purpose 1 hp, three-phase motor designed for industrial applications requiring reliable performance. It replaces Leeson models C143T17FB13F, 190921.00, 121098.00, G120014.00, and 115830.00, making it a suitable upgrade or replacement option.

Key Specifications

• Horsepower: 1 hp
• RPM: 1800
• Voltage: 208-230/460 V
• Amperage: 3.2-3.2/1.6 A
• Enclosure: Totally Enclosed Fan-Cooled (TEFC)
• Frame / Diameter: NEMA 143T
• Shaft Dimensions: 7/8" Diameter x 2 1/4" Length, keyed
• Rotation: Reversible
• Bearings: Ball Bearings

Product Features & Fitment

This motor features a rigid base mount suitable for stable installation in various industrial settings. It includes a keyed shaft for secure coupling and is equipped with Class F insulation for enhanced thermal performance. Wiring diagrams are provided on the motor nameplate to facilitate proper electrical connections.

Cross Reference

• Leeson C143T17FB13F, 190921.00
• Replaces Leeson 121098.00, G120014.00, 115830.00

Warranty

1 Year Manufacturer Warranty
