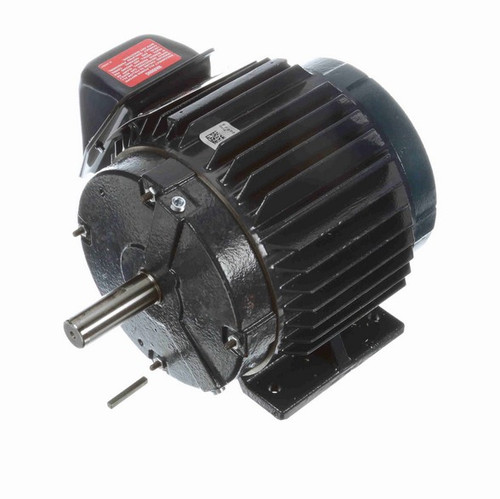

E349 Marathon 1 hp 230/460V 1800 RPM 3-Phase 143T Frame TENV (rigid base) Motor
(No reviews)
Write a Review
Write a Review
Marathon
E349 Marathon 1 hp 230/460V 1800 RPM 3-Phase 143T Frame TENV (rigid base) Motor
$757.28
$669.19
SKU
E349
UPC
7.23E+11
Shipping
Free Shipping
Compliance Tab
/content/product_tabs/p65warnings.html
ON SALE
DISCOUNTED PRICES & SHIPS SAME DAY FOR ORDERS PLACED BEFORE 2 PM
Voltage
230/460V
Horsepower
1 HP
RPM
1800
Phase
Three Phase
Frame
143T
Enclosure
TENV
Hertz
60 Hz
Amperage
3.0/1.5 Amps
Bearings
Ball Bearings
Service Factor
1.15
Insulation Class
Class B
Mounting
Rigid Base
- 1 hp 1800 RPM, 3.0/1.5 amps 230/460 Volts 60hz. Three Phase
- NEMA Cast Iron 143T frame, Keyed Shaft 7/8" Diameter x 2 1/4"
- Service Factor: 1.15, Thermal Overload Protection: None
- Rigid Base, Reversible, Ball Bearings, Class B Insulation
- 1 Year Manufacture Warranty
This is a general purpose three phase motor with a rigid base mount. Shaft has keyway. General purpose motors are for use in situations not having special requirements. Wiring diagram on motor name plate. TENV = Totally Enclosed Non-Ventilated 143TTTN6026
| Compliance Tab | /content/product_tabs/p65warnings.html |
|---|---|
| ON SALE | DISCOUNTED PRICES & SHIPS SAME DAY FOR ORDERS PLACED BEFORE 2 PM |
| Voltage | 230/460V |
| Horsepower | 1 HP |
| RPM | 1800 |
| Phase | Three Phase |
| Frame | 143T |
| Enclosure | TENV |
| Hertz | 60 Hz |
| Amperage | 3.0/1.5 Amps |
| Bearings | Ball Bearings |
| Service Factor | 1.15 |
| Insulation Class | Class B |
| Mounting | Rigid Base |
