E464A Marathon Severe Duty 1 1/2 hp 1800 RPM 230/460V 3-Phase 145T Frame TENV (rigid base) Motor

E464A Marathon Severe Duty 1 1/2 hp 1800 RPM 230/460V 3-Phase 145T Frame TENV (rigid base) Motor

This Marathon severe duty electric motor is designed for industrial applications requiring reliable, heavy-duty performance. It is suitable for replacing similar 1 1/2 hp, 3-phase motors with a 145T frame and totally-enclosed non-ventilated (TENV) construction.

Key Specifications

• Horsepower: 1 1/2 hp
• RPM: 1800
• Voltage: 230/460V
• Amperage: 4.6/2.3 A
• Enclosure: Totally-Enclosed Non-Ventilated (TENV)
• Frame / Diameter: NEMA Cast Iron 145T frame

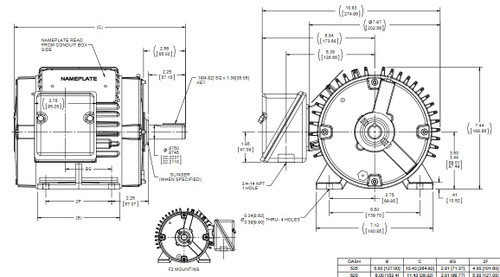

• Shaft Dimensions: 7/8" Diameter x 2 1/4" Length, keyed shaft
• Rotation: Reversible
• Bearings: Ball Bearings

Product Features & Fitment

This motor features a rigid base mounting configuration for secure installation and ease of alignment. The shaft includes a keyway for positive drive connection. Wiring diagrams are provided on the motor nameplate to assist with proper electrical setup. The motor is built with Class F insulation for enhanced thermal endurance.

Warranty

3 Year Manufacturer Warranty
