EC09 Nidec 1 hp 3600 RPM 115/208-230V 56C Frame (No Base) TEFC 1-Phase Electric Motor

SKU:: EC09
UPC:
Weight:: 33.00 LBS
Shipping:: Calculated at Checkout
ON SALE:: LIMITED TIME DISCOUNT

Current Stock:

Was: $380.00

Now: $339.60

Quantity:

Adding to cart… The item has been added

Description
Compliance & Restrictions

1 hp 3600 RPM, 12.8/6.6-6.4 amps 115/208-230 Volts 50/60 Hz Capacitor Start Motor
NEMA 56C frame Keyed Shaft 5/8" Diameter x 1 7/8" Long
Service Factor: 1.15, Overload protection = Auto
Face Mount, Ball Bearings, Class B Insulation, Reversible
1 Year Manufacture Warranty

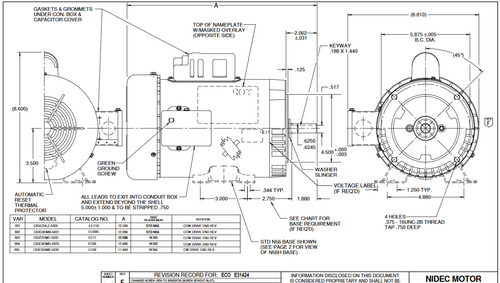

Commercial C-Face pump motor can be used for many applications. Wiring diagram on motor name plate. TEFC = Totally Enclosed Fan Cooled. C063HMD5033014J
