EE508 Nidec 3/4 HP 3600 RPM 3-Phase 208-230/460V 56C Frame (No Base) ODP Special Pump Motor
EE508 Nidec 3/4 HP 3600 RPM 3-Phase 208-230/460V 56C Frame (No Base) ODP Special Pump Motor
EE508 Nidec 3/4 HP 3600 RPM 3-Phase 208-230/460V 56C Frame (No Base) ODP Special Pump Motor
EE508 Nidec 3/4 HP 3600 RPM 3-Phase 208-230/460V 56C Frame (No Base) ODP Special Pump Motor

Nidec

EE508 Nidec 3/4 HP 3600 RPM 3-Phase 208-230/460V 56C Frame (No Base) ODP Special Pump Motor

(No reviews) Write a Review
$495.65
$442.64
SKU EE508
Shipping Free Shipping
Compliance Tab /content/product_tabs/p65warnings.html
ON SALE LIMITED TIME DISCOUNT
Voltage 208/230/460V
Horsepower 3/4 HP
RPM 3600
Phase Three Phase
Frame 56C
Enclosure ODP
Hertz 60 Hz
Amperage 2.8/1.4 Amps
Bearings Ball Bearings
Service Factor 1.25
Insulation Class Class B
Adding to cart… The item has been added
Description

    3/4 hp 3600 RPM, 2.7-2.8/1.4 amps 208-230/460 Volts 60 Hz Three Phase Motor
    NEMA 56C Frame, Keyed Shaft 5/8" Diameter x 1 7/8" Long
    Service Factor: 1.25, Overload protection = None
    Face Mount, Ball Bearings, Class B Insulation, Reversible
    1 Year Manufacture Warranty

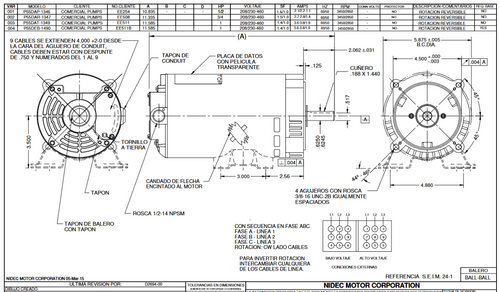

Special purpose three phase C- Face motor is usually used in commercial applications involving specialized pumps.  Wiring diagram on motor name plate. ODP = Open Drip-Proof. P055DAR1347015J

Specifications
Compliance Tab /content/product_tabs/p65warnings.html
ON SALE LIMITED TIME DISCOUNT
Voltage 208/230/460V
Horsepower 3/4 HP
RPM 3600
Phase Three Phase
Frame 56C
Enclosure ODP
Hertz 60 Hz
Amperage 2.8/1.4 Amps
Bearings Ball Bearings
Service Factor 1.25
Insulation Class Class B
!
