1 1/2 hp 3600 RPM, 2.2 amps 575 Volts 60 Hz Three Phase Motor
NEMA 56J Frame, Shaft 5/8" Diameter x 1 7/8" Long with threaded end
Service Factor: 1.3, Overload protection = None
Rigid Base Mount, Ball Bearings, Class B Insulation, CCW Drive End
1 Year Manufacture Warranty
Special purpose three phase C- Face motor is usually used in commercial applications involving specialized pumps. Wiring diagram on motor name plate. ODP = Open Drip-Proof. BK74

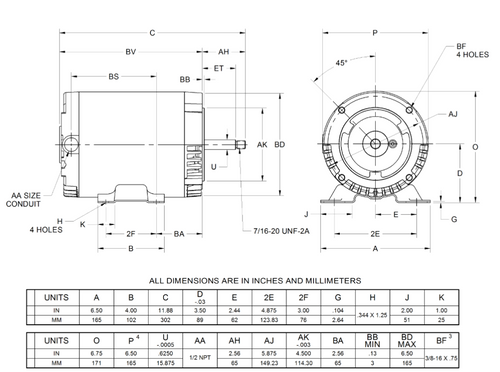

EE607-5 Nidec 1 1/2 HP 3600 RPM 3-Phase 575V 56J Frame (Base) ODP Special Pump Motor
- SKU:
- EE607-5
- Weight:
- 30.00 LBS
- Shipping:
- Calculated at Checkout
- ON SALE:
- LIMITED TIME DISCOUNT
Nidec
