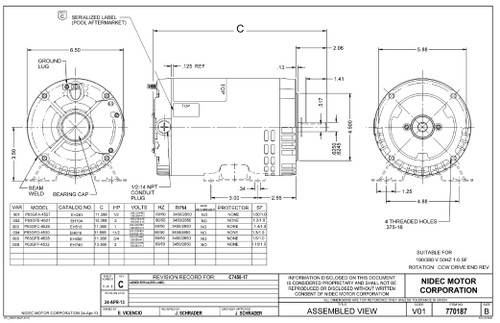

EH704 US Motors 2 hp 3450 RPM 56C 208-230V/460 (ODP) 3-Phase Pool Pump Motor

EH704 US Motors 2 hp 3450 RPM 56C 208-230V/460 (ODP) 3-Phase Pool Pump Motor

This 2 HP, 3-phase pool pump motor is designed to replace motors commonly found on in-ground pool pumps such as Hayward Super Pump, Maxflo, and Super II. It is ideal for applications requiring a NEMA 56C frame motor with a 3450 RPM speed.

Key Specifications

• Horsepower: 2 HP
• RPM: 3450
• Voltage: 208-230/460V, 60 Hz
• Amperage: 6.6-6.4/3.2 amps
• Enclosure: Open Drip Proof (ODP)
• Frame / Diameter: NEMA 56C frame, 6.5" body diameter
• Shaft Dimensions: 5/8" diameter keyed stainless steel shaft
• Rotation: Non-Reversible, Counterclockwise (CCW) facing the shaft
• Bearings: Sealed ball bearings

Product Features & Fitment

This motor features a C-face mount and ball bearings for reliable operation. It does not include overload protection and uses Class B insulation. The motor shaft is stainless steel with a keyed design for secure coupling. Wiring diagrams are provided on the motor nameplate to assist with installation.

Please note that this motor does not comply with California Title 20 or New York NYSERDA efficiency regulations for single-speed pool pump motors. Verify local and state codes before purchasing to ensure compliance with replacement motor requirements. Shipping restrictions apply for California and New York.

Warranty

1 Year Manufacturer Warranty
