EH740 US Motors 3 hp 3450 RPM 56C 208-230V/460 (ODP) 3-Phase Pool Pump Motor

SKU:
EH740
Weight:
39.00 LBS
Shipping:
Calculated at Checkout
ON SALE:
LIMITED TIME DISCOUNT
Was: $631.35
Now: $563.73
Adding to cart… The item has been added
  • 3 HP 3450 RPM, 9.6-9.4/4.7 amps, 208-230/460V 60hz. Three phase
  • NEMA 56C frame (no base), 5/8" diameter keyed stainless steel shaft
  • Overload Protection: None. Class B insulation, 6.5" body dia.
  • Non-Reversible - CCW Rotation facing the shaft
  • C-Face Mount, Ball Bearings, Open Drip Proof (ODP)

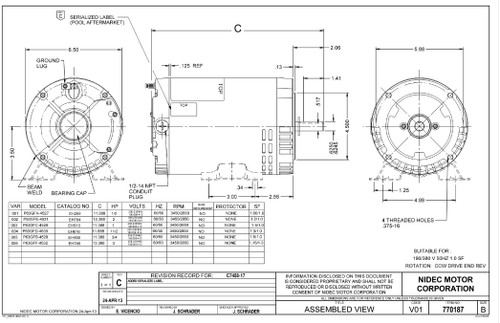

Swimming pool pump motor. Commonly found on in-ground pool pumps such as Hayward Super Pump, Maxflo, Super II and many other pumps requiring a 56J frame motor. Sealed ball bearings. Wiring diagram on motor name plate. 1 year warranty.

Model: P063GFF4532014J

Familiarize yourself with the laws and building codes in your state and local area in regards to replacing pump motors, in order to adhere to their regulations.

ATTENTION CALIFORNIA CONSUMERS: This pump/motor fails to meet California's Efficiency Regulations outlined in Title 20, sections 1601-1609 of the California Code of Regulations (CCR). Starting from July 2021, California mandates that pump/motors must be variable speed, rendering single-speed or two-speed motors non-compliant. Consequently, shipping this pump/motor to California is illegal and violates state law. Should an order for this item be placed with a California shipping address, we will be forced to cancel the order.
ATTENTION NEW YORK CONSUMERS: New York State Energy Research and Development Authority (NYSERDA) Section 509.23 as adopted the same standards as the State of California Title 20 laws. This pump/motor fails to meet these new regulations. Consequently, shipping this pump/motor to New York is illegal and violates state law. Should an order for this item be placed with a New York shipping address, we will be forced to cancel the order.
