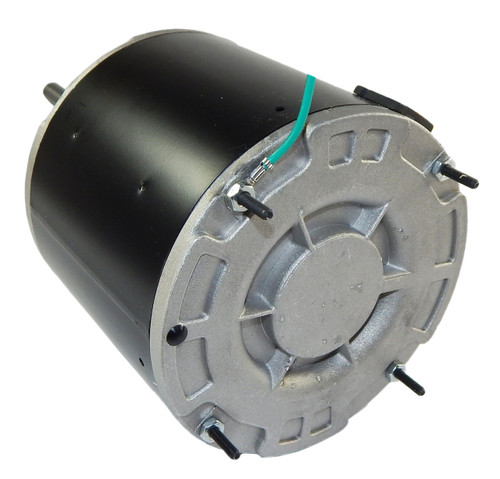

EM3403F | 1/6 hp 825 RPM 48 Frame 208-230V 5 5/8" Diameter Condenser Fan Motor

SKU:: EM3403F
UPC:
Weight:: 14.00 LBS
Width:: 12.00 (in)
Height:: 12.00 (in)
Depth:: 12.00 (in)
Shipping:: Free Shipping
ON SALE:: DISCOUNTED PRICES & SHIPS SAME DAY FOR ORDERS PLACED BEFORE 2 PM
Voltage:: 208/230V
Horsepower:: 1/6 HP
RPM:: 825
Frame:: 48
Amperage:: 1.1 Amps
Bearings:: Ball Bearings
Speeds:: 1-Speed
Insulation Class:: Class F
Rotation:: Reversible
Mounting:: Stud
Duty:: Continuous Duty

Current Stock:

Was: $143.75

Now: $103.95

CURRENTLY OUT OF STOCK

Description
Literature
Compliance & Restrictions

EM3403F | 1/6 hp 825 RPM 48 Frame 208-230V 5 5/8" Diameter Condenser Fan Motor

The EM3403F is a direct replacement condenser fan motor designed for various A/C units, including Economaster models. It is ideal for residential air conditioning applications requiring a reliable, high-quality motor.

Key Specifications

Horsepower: 1/6 hp
RPM: 825
Voltage: 208-230V
Amperage: 1.1 amps
Enclosure: Totally enclosed
Frame / Diameter: 48 Frame / 5 5/8" diameter
Shaft Dimensions: 1/2" x 6"
Rotation: Reversible
Bearings: Ball bearings

Product Features & Fitment

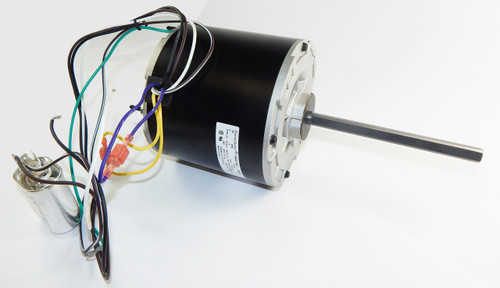

This motor features a 4 5/16" body length and comes with 36" wire leads for easy connection. It requires a 5 MFD 370V capacitor (not included) and supports mounting with the shaft positioned up or down. The motor includes belly band or stud mount options and automatic overload protection for continuous duty operation. Motor thru bolts can be removed and reversed for top mounting, facilitating versatile installation.
