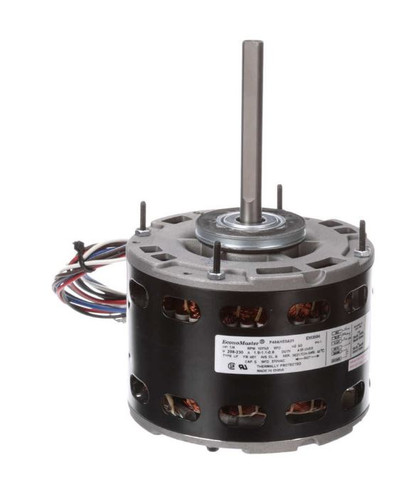

EM3584 | 1/4 hp 1075 RPM 3-Speed 48 Frame 208-230V Direct Drive Furnace Motor

EM3584 | 1/4 hp 1075 RPM 3-Speed 48 Frame 208-230V Direct Drive Furnace Motor

The EM3584 is a direct drive furnace blower motor designed as a popular replacement for various furnace brands. It is ideal for furnace blowers, exhaust fans, and whole house fans, providing reliable and efficient operation.

Key Specifications

• Horsepower: 1/4 hp
• RPM: 1075
• Voltage: 208-230V
• Amperage: 1.9, 1.1, 0.9 amps (3-speed)
• Frame / Diameter: 48 Frame / 5.6" Diameter
• Shaft Dimensions: 1/2" x 4 1/2"
• Rotation: Reversible
• Bearings: Sleeve Bearings

Product Features & Fitment

This motor features a 3-speed design (high, medium, low) with a service factor of 1.0 and continuous duty rating for air-over applications. It requires a 5 MFD 370V capacitor (not included) for operation. The motor includes 26" wire leads and 2 1/2" resilient rings for mounting stability. Its compact body length of 4 5/16" allows for easy installation in standard furnace blower assemblies.

Cross Reference

• many different brand furnaces

Warranty

1 Year Manufacturer Warranty
