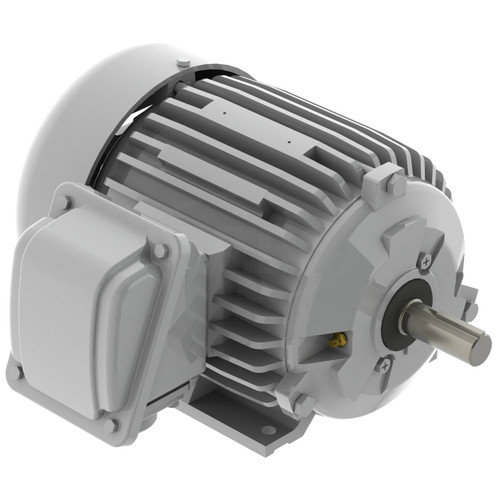

EP0058 TECO Westinghouse 5 hp 900 RPM 254T Cast Iron 230/460V TEFC Severe Duty 3-Phase Motor

EP0058 TECO Westinghouse 5 hp 900 RPM 254T Cast Iron 230/460V TEFC Severe Duty 3-Phase Motor

The TECO Westinghouse EP0058 is a premium NEMA electric motor designed for severe duty industrial applications such as crushers, compressors, mixers, and conveyors. It serves as a reliable replacement motor offering robust performance in demanding environments.

Key Specifications

• Horsepower: 5 hp
• RPM: 900
• Voltage: 230/460 V
• Amperage: 15.0/7.43 A
• Enclosure: Totally Enclosed Fan Cooled (TEFC), IP54
• Frame / Diameter: NEMA 254T Frame
• Shaft Dimensions: 4 x 1 5/8" Diameter Keyed Shaft
• Rotation: Reversible
• Bearings: Ball Bearings

Product Features & Fitment

This motor features a rugged cast iron frame with a rigid base for secure mounting and long service life. It is suitable for inverter duty with a speed range of 20:1 for variable torque and 10:1 for constant torque, compliant with NEMA MG-1 Part 31.4.4.2 standards. The motor includes Class F insulation and a service factor of 1.15, but does not have built-in thermal overload protection. It is UL recognized, CSA approved, and CE marked for quality assurance.

Warranty

1 Year Manufacturer Warranty
