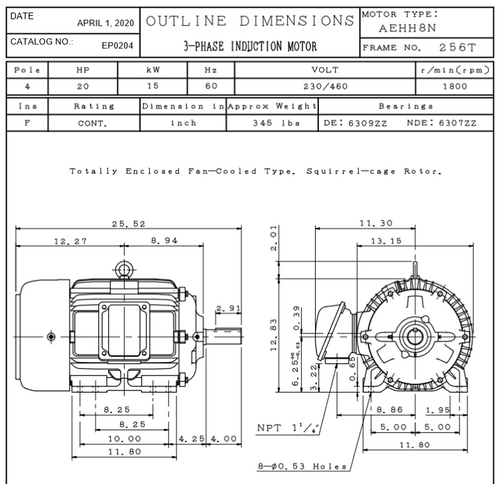

EP0204 TECO Westinghouse 20 hp 1800 RPM 256T Cast Iron 230/460V TEFC Severe Duty 3-Phase Motor

EP0204 TECO Westinghouse 20 hp 1800 RPM 256T Cast Iron 230/460V TEFC Severe Duty 3-Phase Motor

This TECO Westinghouse 20 hp electric motor is designed for severe duty industrial applications such as crushers, compressors, mixers, and conveyors. It replaces standard motors requiring a robust, reliable solution with inverter duty capability and high service factor.

Key Specifications

• Horsepower: 20 hp
• RPM: 1800
• Voltage: 230/460 V
• Amperage: 46.0/23.0 A
• Enclosure: Totally Enclosed Fan Cooled (TEFC), IP54
• Frame / Diameter: NEMA 256T
• Shaft Dimensions: 4 x 1 5/8" Diameter, Keyed
• Rotation: Reversible
• Bearings: Ball Bearings

Product Features & Fitment

Constructed with a cast iron frame and rigid base, this motor offers enhanced durability for harsh environments. It features Class F insulation and is suitable for inverter use per NEMA MG-1 Part 31.4.4.2, supporting a variable torque speed range of 20:1 and constant torque speed range of 10:1. The motor is designed for straightforward installation with a keyed shaft and reversible rotation to accommodate various mounting configurations.

Warranty

1 Year Manufacturer Warranty
