EPV0024C TECO-Westinghouse 2 hp 1800 RPM 145TC Vertical 230/460V TEFC Severe Duty Petro-Chem 3-Ph Motor

EPV0024C TECO-Westinghouse 2 hp 1800 RPM 145TC Vertical 230/460V TEFC Severe Duty Petro-Chem 3-Ph Motor

The EPV0024C is a TECO-Westinghouse premium NEMA electric motor designed for severe duty petro-chemical applications, including environments with explosive gases. This 2 hp, 3-phase motor delivers reliable performance with inverter duty capability and is suitable for replacing similar motors in demanding industrial settings.

Key Specifications

• Horsepower: 2 hp
• RPM: 1800
• Voltage: 230/460 V
• Amperage: 5.56/2.78 A
• Enclosure: Totally Enclosed Fan Cooled (TEFC), IP54

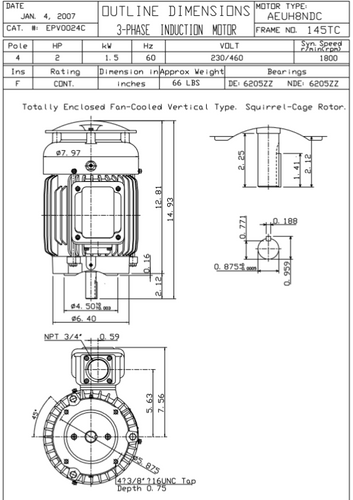

• Frame / Diameter: NEMA 145TC Frame
• Shaft Dimensions: 2 1/8" length x 7/8" diameter, keyed
• Rotation: Reversible
• Bearings: Ball Bearings

Product Features & Fitment

This motor features a cast iron frame with a rigid base for secure mounting and durability in harsh environments. It is equipped with Class F insulation and is suitable for inverter use, supporting a variable torque speed range of 20:1 and a constant torque speed range of 10:1 per NEMA MG-1 Part 31.4.4.2. The motor is UL recognized, CSA approved, and CE marked, ensuring compliance with safety and performance standards for severe duty petro-chemical applications classified as Class 1, Division 2, Groups B, C, and D.

Warranty

1 Year Manufacturer Warranty
