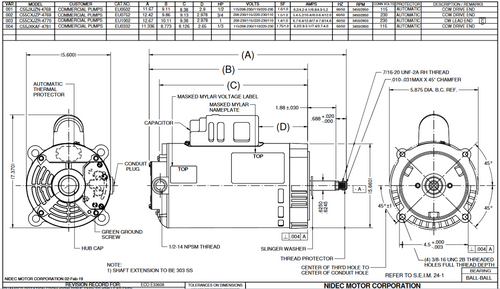

- 1 hp 3600 RPM, 10.4/5.4-5.2 amps 115/208-230 Volts 50/60 Hz Capacitor Start Motor
- NEMA 56J Frame, Shaft 5/8" Diameter x 1 7/8" Long with threaded tip
- Service Factor: 1.4, Overload protection = Auto
- Face Mount, Ball Bearings, Class B Insulation, CCW drive end
- 1 Year Manufacture Warranty
Commercial C-Face pump motor can be used for many applications. Wiring diagram on motor name plate. ODP = Open Drip Proof. C055JZR4770013J
