EU2002 Nidec 2 hp 3600 RPM 115/208-230V 56J Frame (No Base) ODP 1-Phase Electric Motor

SKU:
EU2002
Weight:
34.00 LBS
Shipping:
Calculated at Checkout
ON SALE:
LIMITED TIME DISCOUNT
Was: $608.00
Now: $543.20
Adding to cart… The item has been added
  • 2 hp 3600 RPM, 19.6/10.7-9.8 amps 115/208-230 Volts 50/60 Hz Capacitor Start / Capacitor Run Motor

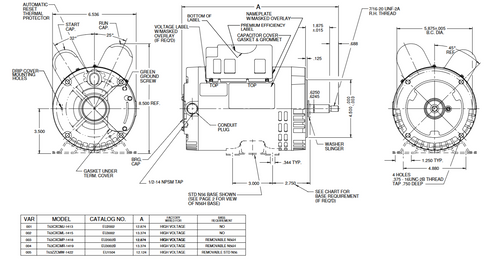

  • NEMA 56J Frame, Shaft 5/8" Diameter x 1 7/8" Long with threaded tip
  • Service Factor: 1.2, Overload protection = Auto
  • Face Mount, Ball Bearings, Class B Insulation, CCW drive end
  • 1 Year Manufacture Warranty

Commercial C-Face pump motor can be used for many applications. Wiring diagram on motor name plate. ODP = Open Drip Proof. T063CMJ1413013J
