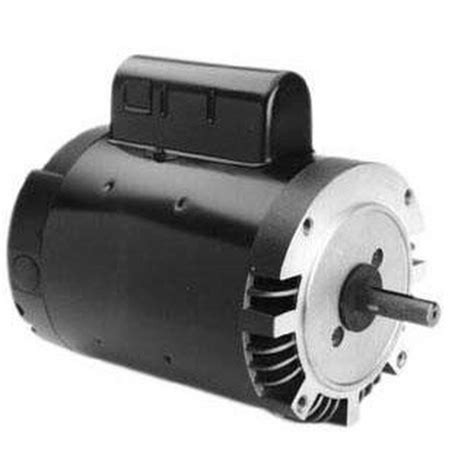

EU1502 Nidec 1 1/2 hp 3600 RPM 115/208-230V 56J Frame (No Base) ODP 1-Phase Electric Motor

EU1502 Nidec 1 1/2 hp 3600 RPM 115/208-230V 56J Frame (No Base) ODP 1-Phase Electric Motor

This Nidec 1 1/2 horsepower electric motor is designed for commercial and industrial applications, including pump systems requiring a C-Face mount. It serves as a reliable replacement motor with a capacitor start for single-phase power supplies.

Key Specifications

• Horsepower: 1 1/2 hp
• RPM: 3600
• Voltage: 115/208-230 V
• Amperage: 18.2/9.2-9.1 A
• Enclosure: Open Drip Proof (ODP)
• Frame / Diameter: NEMA 56J Frame
• Shaft Dimensions: 5/8" diameter x 1 7/8" long with threaded tip
• Rotation: Counterclockwise (CCW) drive end
• Bearings: Ball Bearings

Product Features & Fitment

This motor features a capacitor start design with a service factor of 1.3 and automatic overload protection for enhanced durability. It includes a face mount configuration suitable for commercial C-Face pump applications. Wiring diagrams are provided on the motor nameplate for straightforward installation.

Warranty

1 Year Manufacturer Warranty
