SVB2054V1 Century Evaporative Cooler Motor 1/2 hp 1725 RPM 2-Speed 56Z Frame 115V # SVB2054V1

SVB2054V1 Century Evaporative Cooler Motor 1/2 hp 1725 RPM 2-Speed 56Z Frame 115V

The SVB2054V1 is a 1/2 horsepower, 2-speed evaporative cooler motor designed for use in high-moisture environments such as evaporative coolers and pumps. It serves as a reliable replacement for models including Dayton 2HTK9 and 3K304, ensuring consistent performance in demanding applications.

Key Specifications

• Horsepower: 1/2 hp
• RPM: 1725
• Voltage: 115 V
• Amperage: 8.4 A
• Enclosure: Open (Split Phase)
• Frame / Diameter: 56Z, Ring to Ring Center 7 7/16"
• Shaft Dimensions: 1/2" diameter x 1 1/2" length
• Rotation: CCW Lead End
• Bearings: Sleeve Bearings

Product Features & Fitment

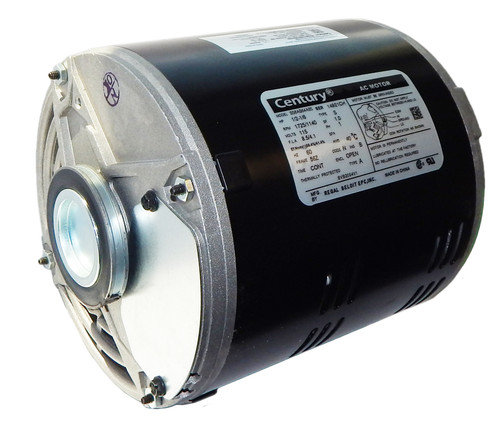

This motor features a split-phase, open enclosure design suitable for evaporative coolers and similar equipment. It does not include a mounting base and is sold as shown in the product images. The shaft rotation is counterclockwise when viewed from the lead end, and the motor is built to withstand high-moisture conditions.

Warranty

1 Year Manufacturer Warranty
