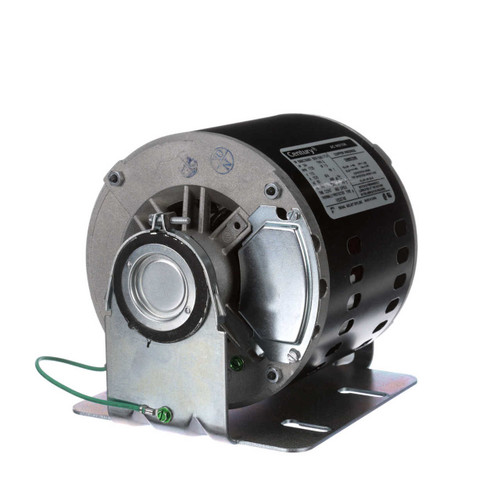

VB2074B Century Evaporative Cooler Motor 3/4 hp 1725 RPM 56Z Frame 115V Century # VB2074B

VB2074B Century Evaporative Cooler Motor 3/4 hp 1725 RPM 56Z Frame 115V

The VB2074B is a 3/4 horsepower evaporative cooler motor designed to replace Century # VB2074B and compatible with Dayton 2HTL3 (Reference S56C18A01). It is ideal for evaporative coolers, pumps, and other equipment operating in high-moisture environments.

Key Specifications

• Horsepower: 3/4 hp
• RPM: 1725
• Voltage: 115V
• Amperage: 10.2 amps
• Enclosure: Open Drip Proof
• Frame / Diameter: 56Z
• Shaft Dimensions: 5/8" x 1 7/8"
• Rotation: Reversible
• Bearings: Sleeve Bearings

Product Features & Fitment

This motor features a split-phase design with a single speed operation. It mounts on a cradle base with a ring-to-ring center measurement of 7 7/16" and a motor length (excluding shaft) of 7 15/16". The reversible rotation and open drip proof enclosure make it suitable for use in humid conditions commonly found in evaporative cooling applications.

Warranty

1 Year Manufacturer Warranty
