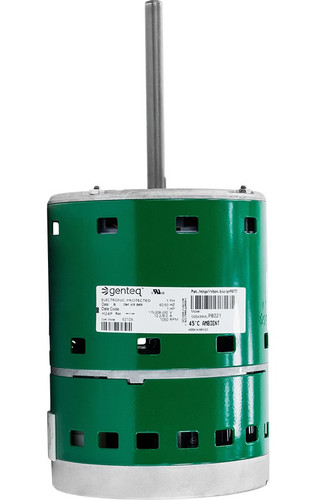

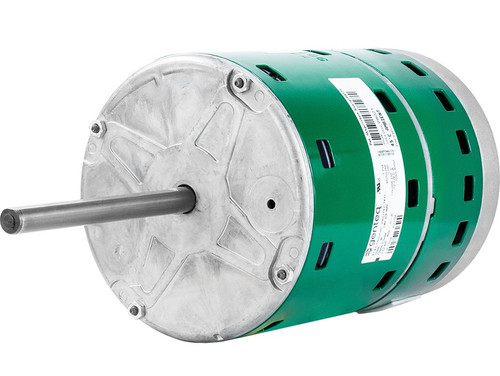

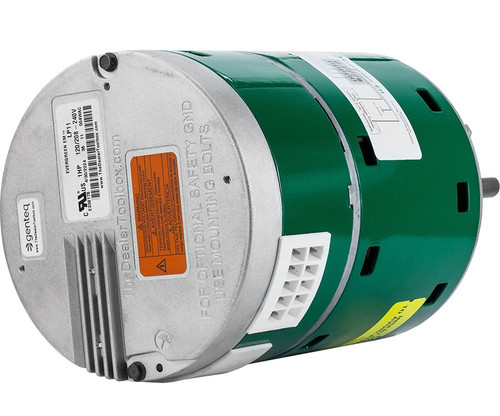

Evergreen EM Genteq 6210X | 1 HP 115/230 Volt ECM Replacement Furnace Blower Motor

Evergreen EM Genteq 6210X | 1 HP 115/230 Volt ECM Replacement Furnace Blower Motor

The Evergreen EM Genteq 6210X is a dual voltage, constant torque ECM replacement blower motor designed for furnace applications. It serves as a direct replacement for various 1 HP X13 constant torque motors from major manufacturers, ensuring reliable performance and compatibility.

Key Specifications

• Horsepower: 1 HP
• RPM: 600-1100 (fully variable, PWM compatible)
• Voltage: 115/208-230V, 60 Hz
• Amperage: 12.2/9.0 Amps
• Frame / Diameter: 48 Frame, 5.6" Diameter
• Shaft Dimensions: 1/2" x 5"
• Rotation: Electronically Commutated Rotation
• Bearings: Ball Bearing
• Enclosure: Open Air Over, Class B Insulation

Product Features & Fitment

This motor comes pre-programmed from the factory and is ready to use out of the box, improving first-time installation success. It features rotation sensing technology and is fully variable speed controlled via PWM signals. The motor includes 42" leads for easy wiring and is designed to replace numerous OEM part numbers including 6210E, 5652, 6653, and others, as well as the Azure Digi-Motor #10800.

Please note, this motor does not replace EON, 3.0, 2.3, or 2.5 ECM motors.

Cross Reference

• 6210E,5652 , 6653, 10859, D672366G02 , D672366G26 , D672366G42 , MOT12307 , MOT-12307 , MOT12243 , MOT-12243 , MOT12290 , MOT12307 , MOT12308 , MOT12318 , MOT13008 , MOT13042 , MOT13119 , MOT13120 , MOT13121 , MOT13134 , MOT13136 , MOT13595 , MOT13910 , MOT14008 , MOT17041 , MOT17047 , MOT17057 , MOT17839 , 5SME39SXL013A , X70370580080 1173685 , 1177020 , 1174362 , 1177600 , 1177602 , 1177605 , 1177612 , 1176468 , 5SME36SXL055 , 5SME39SXL055B , 5SME39SXL093A , 5SME39SXL359 , 5SME39SXL381 , 5SME39SXL386 , HD52AR239 , HK52ER240 , HK52ER244 , HK52AE133A , 815585020530 101207-08 , 101207-05 and other 1 HP X13 Constant Torque Motors from ALL Major Manufacturers as well as the Azure Digi-Motor # 10800
• DOES NOT REPLACE EON , 3.0 , 2.3 and 2.5 ECM Motors
