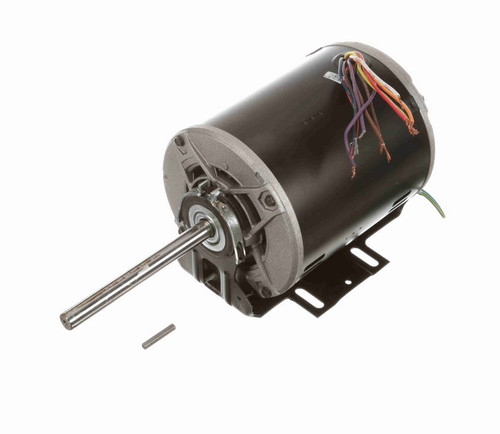

F267V1 Century 1/3 hp (2 speed) 100-155/200-230V 1800 RPM ODP 56Z Frame Pizza Oven Motor

F267V1 Century 1/3 hp (2 speed) 100-155/200-230V 1800 RPM ODP 56Z Frame Pizza Oven Motor

This Century 1/3 horsepower motor is designed for use in pizza and convection fan ovens, providing reliable performance with reversible rotation. It replaces standard oven motors requiring a 56Z frame and offers dual voltage compatibility for versatile applications.

Key Specifications

• Horsepower: 1/3 hp
• RPM: 1800
• Voltage: 100-155 / 200-230 V, 60 Hz
• Amperage: 4.8 / 2.4 A
• Enclosure: Open Drip Proof (ODP)
• Frame / Diameter: NEMA 56Z Frame
• Shaft Dimensions: 5 7/8" length x 5/8" diameter
• Rotation: Reversible
• Bearings: Ball Bearings

Product Features & Fitment

The motor features a resilient base for stable mounting and includes thermal protection with automatic reset. It is designed for split phase operation and includes Class B insulation for enhanced durability. This motor is suitable for direct replacement in compatible pizza and convection ovens requiring a 56Z frame ODP motor.

Warranty

1 Year Manufacturer Warranty
