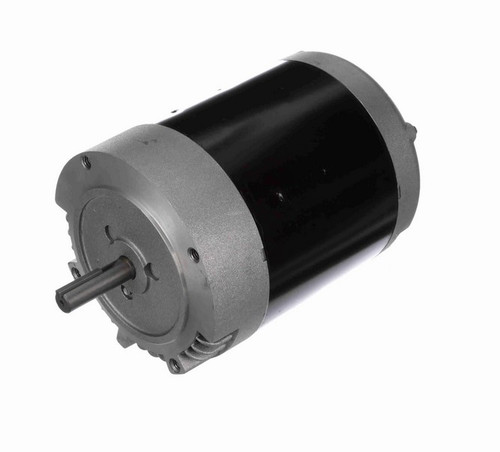

F270 Century 1/8 hp 1200 RPM 56CZ Frame 115V ODP (No Base) Exhaust Blower Motor

F270 Century 1/8 hp 1200 RPM 56CZ Frame 115V ODP (No Base) Exhaust Blower Motor

This Century 1/8 horsepower exhaust blower motor is designed for belt drive applications, providing reliable performance in HVAC and industrial settings. It replaces motors requiring a 56CZ frame and operates efficiently at 1200 RPM with reversible rotation.

Key Specifications

• Horsepower: 1/8 hp
• RPM: 1200
• Voltage: 115V
• Amperage: 3.0 amps
• Enclosure: Open Drip Proof (ODP)
• Frame / Diameter: NEMA 56CZ rolled steel
• Shaft Dimensions: 5/8" diameter x 2 1/4" length
• Rotation: Reversible
• Bearings: Ball Bearings

Product Features & Fitment

This split phase motor features a service factor of 1.4 and Class B insulation for durability. It includes automatic overload protection and does not come with a base, allowing for flexible mounting options. The wiring diagram is conveniently located on the motor nameplate to assist with installation.

Warranty

1 Year Manufacturer Warranty
