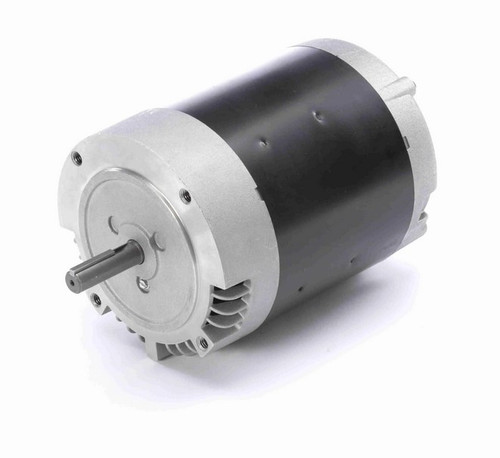

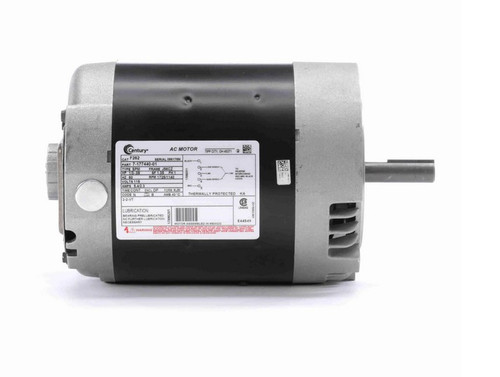

F262 Century 1/3 hp 1800/1200 RPM 56CZ Frame 115V (No Base) ODP Exhaust Blower Motor
F262 Century 1/3 hp 1800/1200 RPM 56CZ Frame 115V (No Base) ODP Exhaust Blower Motor
F262 Century 1/3 hp 1800/1200 RPM 56CZ Frame 115V (No Base) ODP Exhaust Blower Motor
F262 Century 1/3 hp 1800/1200 RPM 56CZ Frame 115V (No Base) ODP Exhaust Blower Motor
F262 Century 1/3 hp 1800/1200 RPM 56CZ Frame 115V (No Base) ODP Exhaust Blower Motor
F262 Century 1/3 hp 1800/1200 RPM 56CZ Frame 115V (No Base) ODP Exhaust Blower Motor
F262 Century 1/3 hp 1800/1200 RPM 56CZ Frame 115V (No Base) ODP Exhaust Blower Motor
F262 Century 1/3 hp 1800/1200 RPM 56CZ Frame 115V (No Base) ODP Exhaust Blower Motor

Century Electric Motor

F262 Century 1/3 hp 1800/1200 RPM 56CZ Frame 115V (No Base) ODP Exhaust Blower Motor

(No reviews) Write a Review
$570.17
$483.23
SKU F262
Shipping Free Shipping
Compliance Tab /content/product_tabs/p65warnings.html
ON SALE DISCOUNTED PRICES & SHIPS SAME DAY FOR ORDERS PLACED BEFORE 2 PM
Voltage 115V
Horsepower 1/3 HP
RPM 1800
Frame 56CZ
Enclosure ODP
Hertz 60 Hz
Type Split Phase
Amperage 5.4/2.3 Amps
Bearings Ball Bearings
Service Factor 1.35
Insulation Class Class B
Rotation Reversible
Adding to cart… The item has been added
Description

F262 Century 1/3 hp 1800/1200 RPM 56CZ Frame 115V (No Base) ODP Exhaust Blower Motor

This Century 1/3 horsepower exhaust blower motor is designed for belt drive applications requiring reliable performance. It is suitable for replacing motors in HVAC systems and other equipment needing a dual-speed, open drip proof motor.

Key Specifications

  • Horsepower: 1/3 hp
  • RPM: 1800/1200
  • Voltage: 115V
  • Amperage: 5.4/2.3 amps
  • Enclosure: Open Drip Proof (ODP)
  • Frame / Diameter: NEMA 56CZ rolled steel frame
  • Shaft Dimensions: 5/8" diameter x 2 1/4" length
  • Rotation: Reversible
  • Bearings: Ball Bearings

Product Features & Fitment

This split phase motor operates at 60 Hz and includes an automatic overload protection feature. It is supplied without a base and is designed for easy integration into existing belt drive blower systems. The wiring diagram is conveniently located on the motor nameplate to assist with installation.

Warranty

1 Year Manufacturer Warranty

Warranty Information
1 Year Manufacturer Warranty
Specifications
Compliance Tab /content/product_tabs/p65warnings.html
ON SALE DISCOUNTED PRICES & SHIPS SAME DAY FOR ORDERS PLACED BEFORE 2 PM
Voltage 115V
Horsepower 1/3 HP
RPM 1800
Frame 56CZ
Enclosure ODP
Hertz 60 Hz
Type Split Phase
Amperage 5.4/2.3 Amps
Bearings Ball Bearings
Service Factor 1.35
Insulation Class Class B
Rotation Reversible
!
