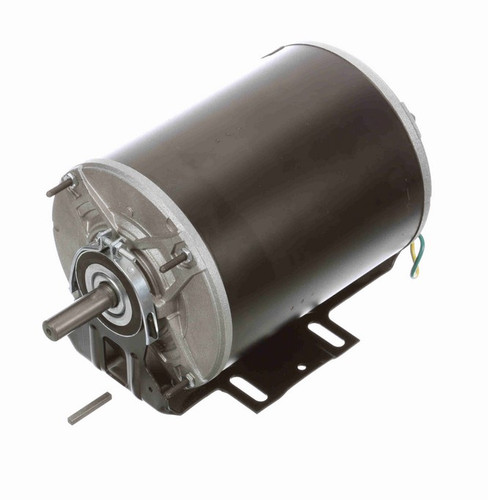

F502V1 Century 1/2 hp 1800 RPM 115/230V TEAO 56 Frame Belt Drive Motor
F502V1 Century 1/2 hp 1800 RPM 115/230V TEAO 56 Frame Belt Drive Motor
F502V1 Century 1/2 hp 1800 RPM 115/230V TEAO 56 Frame Belt Drive Motor
F502V1 Century 1/2 hp 1800 RPM 115/230V TEAO 56 Frame Belt Drive Motor
F502V1 Century 1/2 hp 1800 RPM 115/230V TEAO 56 Frame Belt Drive Motor
F502V1 Century 1/2 hp 1800 RPM 115/230V TEAO 56 Frame Belt Drive Motor
F502V1 Century 1/2 hp 1800 RPM 115/230V TEAO 56 Frame Belt Drive Motor
F502V1 Century 1/2 hp 1800 RPM 115/230V TEAO 56 Frame Belt Drive Motor

Century Electric Motor

F502V1 Century 1/2 hp 1800 RPM 115/230V TEAO 56 Frame Belt Drive Motor

(No reviews) Write a Review
$310.39
$263.01
SKU F502V1
UPC 7.87E+11
Shipping Free Shipping
Compliance Tab /content/product_tabs/p65warnings.html
ON SALE DISCOUNTED PRICES & SHIPS SAME DAY FOR ORDERS PLACED BEFORE 2 PM
Voltage 115/230V
Horsepower 1/2 HP
RPM 1800
Phase Single Phase
Frame 56
Enclosure TEAO
Hertz 60 Hz
Amperage 2/3.6 Amps
Bearings Ball Bearings
Insulation Class Class B
Rotation Reversible
Adding to cart… The item has been added
Description
  • 1/2 hp 1800 RPM, 7,2/3.6 amps, 115/230 Volts 60 Hz. Split Phase
  • NEMA 56 Frame, TEAO, Shaft 5/8" Diameter x 1 5/8" with short rear shaft having flat
  • Service Factor = 1.0, Overload Protection: Auto
  • Resilient Base, Reversible Rotation, Ball Bearings, Class B Insulation
  • 1 Year Manufacture Warranty

Single phase motor designed for belt drive fans in farm buildings, TEAO = Totally-Enclosed Air-Over so motor must be in air stream for proper cooling, F502V1

Specifications
Compliance Tab /content/product_tabs/p65warnings.html
ON SALE DISCOUNTED PRICES & SHIPS SAME DAY FOR ORDERS PLACED BEFORE 2 PM
Voltage 115/230V
Horsepower 1/2 HP
RPM 1800
Phase Single Phase
Frame 56
Enclosure TEAO
Hertz 60 Hz
Amperage 2/3.6 Amps
Bearings Ball Bearings
Insulation Class Class B
Rotation Reversible
!
