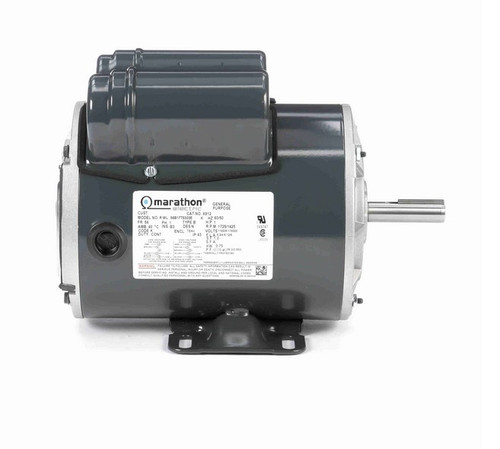

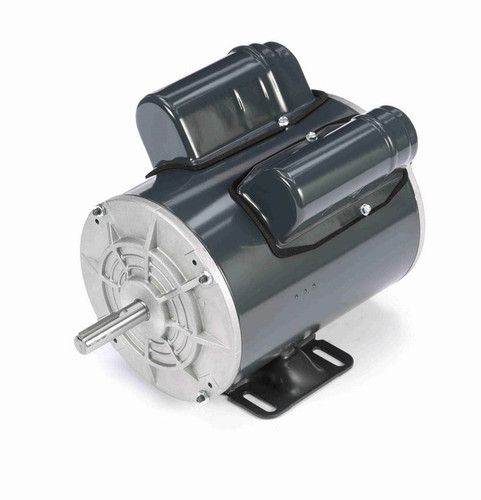

X912 Marathon 1 hp 1800 RPM 115/230V TENV 56 Frame Belt Drive Motor
X912 Marathon 1 hp 1800 RPM 115/230V TENV 56 Frame Belt Drive Motor
X912 Marathon 1 hp 1800 RPM 115/230V TENV 56 Frame Belt Drive Motor
X912 Marathon 1 hp 1800 RPM 115/230V TENV 56 Frame Belt Drive Motor
X912 Marathon 1 hp 1800 RPM 115/230V TENV 56 Frame Belt Drive Motor
X912 Marathon 1 hp 1800 RPM 115/230V TENV 56 Frame Belt Drive Motor
X912 Marathon 1 hp 1800 RPM 115/230V TENV 56 Frame Belt Drive Motor
X912 Marathon 1 hp 1800 RPM 115/230V TENV 56 Frame Belt Drive Motor

Marathon

X912 Marathon 1 hp 1800 RPM 115/230V TENV 56 Frame Belt Drive Motor

(No reviews) Write a Review
$435.51
$359.95
SKU X912
UPC 7.23E+11
Shipping Free Shipping
Compliance Tab /content/product_tabs/p65warnings.html
ON SALE DISCOUNTED PRICES & SHIPS SAME DAY FOR ORDERS PLACED BEFORE 2 PM
Voltage 115/230V
Horsepower 1 HP
RPM 1800
Phase Single Phase
Frame 56
Enclosure TENV
Hertz 60 Hz
Amperage 9.2/4.6 Amps
Bearings Ball Bearings
Insulation Class Class B
Rotation Reversible
Mounting Rigid Base
Adding to cart… The item has been added
Description
  • 1 hp 1800 RPM, 9.2/4.6 amps, 115/230 Volts 60 Hz. Capacitor Start/Capacitor Run
  • NEMA 56 Frame, TENV, Shaft 5/8" Diameter x 1 5/8" with short rear shaft having flat
  • Service Factor = 1.0, Overload Protection: Auto
  • Rigid Base, Reversible Rotation, Ball Bearings, Class B Insulation
  • 1 Year Manufacture Warranty

Single phase motor designed for belt drive fans in farm buildings, TENV = Totally-Enclosed Non-Ventilated, 056B17T5303

Specifications
Compliance Tab /content/product_tabs/p65warnings.html
ON SALE DISCOUNTED PRICES & SHIPS SAME DAY FOR ORDERS PLACED BEFORE 2 PM
Voltage 115/230V
Horsepower 1 HP
RPM 1800
Phase Single Phase
Frame 56
Enclosure TENV
Hertz 60 Hz
Amperage 9.2/4.6 Amps
Bearings Ball Bearings
Insulation Class Class B
Rotation Reversible
Mounting Rigid Base
!
