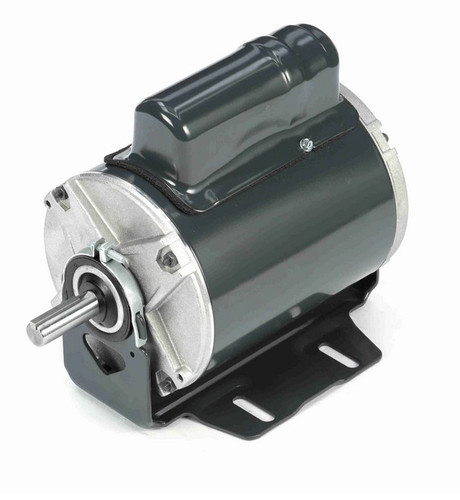

H647 Marathon 1/2 hp 1800 RPM 115/208-230V TENV 56 Frame Split-Phase Farm Motor
H647 Marathon 1/2 hp 1800 RPM 115/208-230V TENV 56 Frame Split-Phase Farm Motor
H647 Marathon 1/2 hp 1800 RPM 115/208-230V TENV 56 Frame Split-Phase Farm Motor
H647 Marathon 1/2 hp 1800 RPM 115/208-230V TENV 56 Frame Split-Phase Farm Motor
H647 Marathon 1/2 hp 1800 RPM 115/208-230V TENV 56 Frame Split-Phase Farm Motor
H647 Marathon 1/2 hp 1800 RPM 115/208-230V TENV 56 Frame Split-Phase Farm Motor
H647 Marathon 1/2 hp 1800 RPM 115/208-230V TENV 56 Frame Split-Phase Farm Motor
H647 Marathon 1/2 hp 1800 RPM 115/208-230V TENV 56 Frame Split-Phase Farm Motor

Marathon

H647 Marathon 1/2 hp 1800 RPM 115/208-230V TENV 56 Frame Split-Phase Farm Motor

(No reviews) Write a Review
$479.32
$413.89
SKU MH647
UPC 7.23E+11
Shipping Free Shipping
Compliance Tab /content/product_tabs/p65warnings.html
ON SALE DISCOUNTED PRICES & SHIPS SAME DAY FOR ORDERS PLACED BEFORE 2 PM
Voltage 115/208/230V
Horsepower 1/2 HP
RPM 1800
Phase Single Phase
Frame 56
Enclosure TENV
Hertz 60 Hz
Amperage 2.6 Amps
Bearings Ball Bearings
Insulation Class Class B
Rotation Reversible
Adding to cart… The item has been added
Description
  • 1/2 hp 1800 RPM, 5.2/2.7-2.6 amps, 115/208-230 Volts 60 Hz. Split Phase
  • NEMA 56 Frame, TEAO, Shaft 5/8" Diameter x 1 7/8"
  • Service Factor = 1.3, Overload Protection: Auto
  • Resilient Base, Reversible Rotation, Ball Bearings, Class B Insulation
  • 1 Year Manufacture Warranty

Single phase motor designed for belt drive fans in farm buildings, TENV = Totally-Enclosed Non-Ventilated, 5KHC39QN9584X





Specifications
Compliance Tab /content/product_tabs/p65warnings.html
ON SALE DISCOUNTED PRICES & SHIPS SAME DAY FOR ORDERS PLACED BEFORE 2 PM
Voltage 115/208/230V
Horsepower 1/2 HP
RPM 1800
Phase Single Phase
Frame 56
Enclosure TENV
Hertz 60 Hz
Amperage 2.6 Amps
Bearings Ball Bearings
Insulation Class Class B
Rotation Reversible
!
